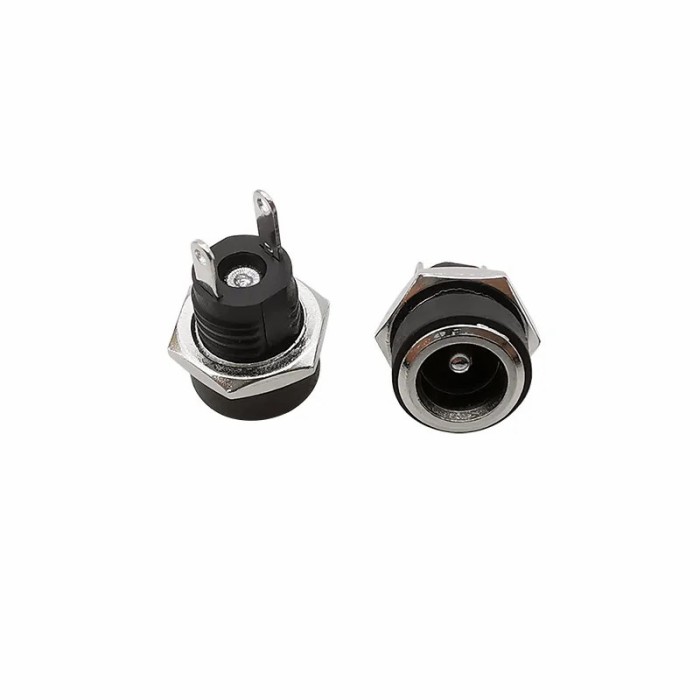

DC-022B 5.5x2.1mm Box Mount DC Power Jack

$0.0750
In stock
SKU
CAB-20-007
DC-022B 5.5x2.1mm Box Mount DC Power Jack is available to buy in increments of 20
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
MPX 6-pin Plug Connector with Gold Plating Previous MPX 6-pin Plug Connector with Gold Plating

The DC-022B 5.5x2.1mm Box Mount DC Power Jack is a versatile and durable power connector designed for a wide range of electronic projects. This DC power jack is ideal for providing a stable power connection for your devices, featuring a standard 5.5mm outer diameter and 2.1mm inner diameter. Its box mount design ensures a secure and stable installation, making it suitable for use in enclosures and project boxes. This power jack is perfect for DIY electronics, prototyping, and custom power supply applications.

Specifications of DC-022B 5.5x2.1mm Box Mount DC Power Jack

  • Withstand voltage: 500V, AC/min

  • Rated load: 30V DC 1.0A

  • Dimensions: 17x12x12mm

  • Mounting Type: Box mount

  • Connector Size: 5.5mm outer diameter, 2.1mm inner diameter

  • Material: Metal and plastic

  • Operating Temperature: -30°C to +70°C

  • Contact resistance: ≤0.052

  • Insulation resistance: ≥100ΜΩ

  • Insertion and extraction force: 3N~20N

  • Appliance life: 5000 times
