DC 0-100V 100A Current Voltage Digital Display Module
$0.9100
In stock
SKU
SEN-04-055
Volume discounts:
- +50 3 % $0.8800
- +100 5 % $0.8600
- +300 7 % $0.8500
- +500 9 % $0.8300
- +1000 10 % $0.8200
Product Variations:
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Current Shunt Resistor - 10A Previous

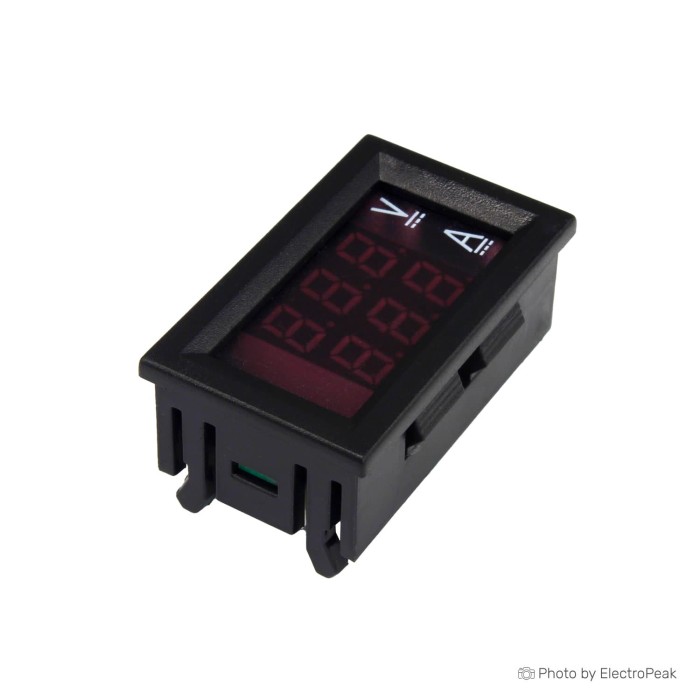

DC 0-100V 100A Digital Voltage Current Display Module provides digital monitoring for voltage and current in electrical circuits and equipment. It uses a 0.28-inch LED seven-segment display with red voltage digits and blue current digits. This voltmeter ammeter module shows DC voltage and DC current on a clear dual display. Reverse protection is included for added safety. A separate shunt is required for ammeter use, as direct ammeter connection is not supported.
Features of DC 0-100V 100A Digital Voltage Current Display Module
- Dual voltage and current display
- 0.28-inch LED seven-segment display
- Red voltage display
- Blue current display
- Reverse protection
- Portable design
Specifications of DC 0-100V 100A Digital Voltage Current Display Module
- Type: Digital Voltmeter Ammeter
- Input Voltage: DC0-100V
- Output Voltage: DC0-100V
- Testing Range: 2A/5A/10A/50A/100A
- Voltage Measurement Accuracy: 0.1V
- Display Size: 0.28 inch
- Size: 2.6x2.9x4.8 cm
- Weight: 40 g
- Refresh Rate: 500 ms
- Material: ABS Flame Retardant Plastic
- Ambient Temperature: -10?- +85?
- Style: 1: 10A Red Blue, 2: 10A Red Red, 3: 50A Red Red, 4: 50A Red Blue, 5: 100A Red Red, 6: 100A Red Blue
How to Use DC 0-100V 100A Digital Voltage Current Display Module
- Connect the module within the DC voltage measurement range.
- Use a separate shunt for current measurement.
- Read voltage and current from the dual display.
More Info
- Suitable for electrical circuits and equipment
- Direct ammeter connection is not supported
- Separate shunt required for ammeter use
| Operating Temp (°C) | -10 to 85 |
|---|---|
| Dimensions (mm) | 48 x 29 x 26 mm |
| Mounting Type | Panel Mount |
| Accuracy | 0.1V |
| Current Range (A) | 100A |
| Voltage Range (V) | 100V DC |
| Weight (g) | 40 |
| Material | Plastic |
| Display Type | LED |
| Parameters | Current, Voltage |
