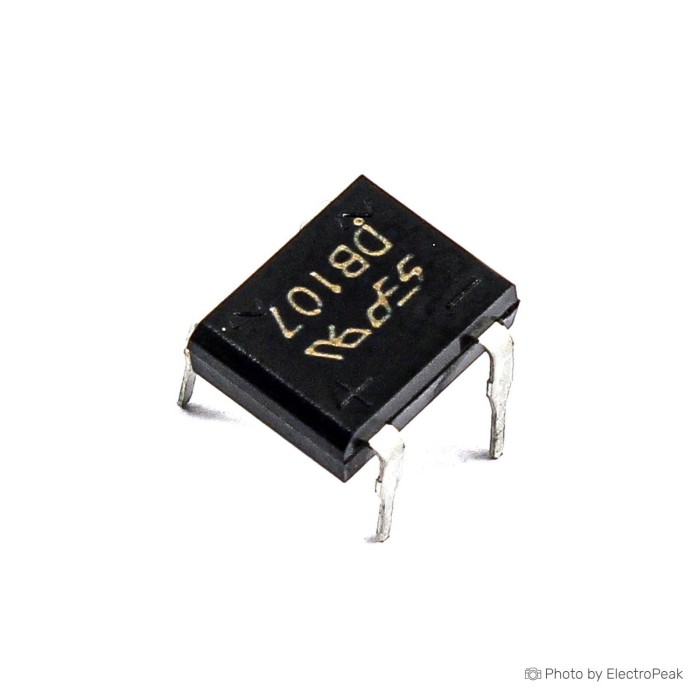

DB107 1A Bridge Rectifier
$0.0330
In stock
SKU
ELC-15-004
Volume discounts:
- +500 6 % $0.0310
- +5000 9 % $0.0300
- +10000 12 % $0.0290
- +20000 15 % $0.0280
DB107 1A Bridge Rectifier is available to buy in increments of 20
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DB107 1A Bridge Rectifier is a bridge rectifier for AC to DC conversion. It is designed as a single-phase bridge type with a DB package and 4-pin configuration. The device provides rectified output polarity for either input polarity. DB107 Bridge Rectifier is specified with 1A current handling and through-hole mounting.
Features of DB107 1A Bridge Rectifier
- 1A forward current
- 1000V reverse repetitive voltage
- Single-phase bridge type
- Through-hole mounting
- DB package
- 4-pin configuration
Specifications of DB107 1A Bridge Rectifier
- Model: DB107
- Maximum voltage effective: up to 700V DC
- Current: 1A
- Reverse current: 5 microamp
- Maximum reverse voltage: 1000V DC
- Temperature range: -55°C to 125°C
- Peak average forward current: 1A
- Peak reverse repetitive voltage: 1000V
- Mounting type: Through Hole
- Package type: DB
- Pin count: 4
- Configuration: Single
- Maximum operating temperature: 150 C
- Minimum operating temperature: -55 C
- Peak forward voltage: 1.1V
How to Use DB107 1A Bridge Rectifier
- Connect the AC input to the bridge rectifier terminals.
- Take the DC output from the rectifier output terminals.
- Use the device within the listed electrical and temperature limits.
More Info
- Bridge rectifier circuit arrangement.
- Suitable for AC to DC conversion.
