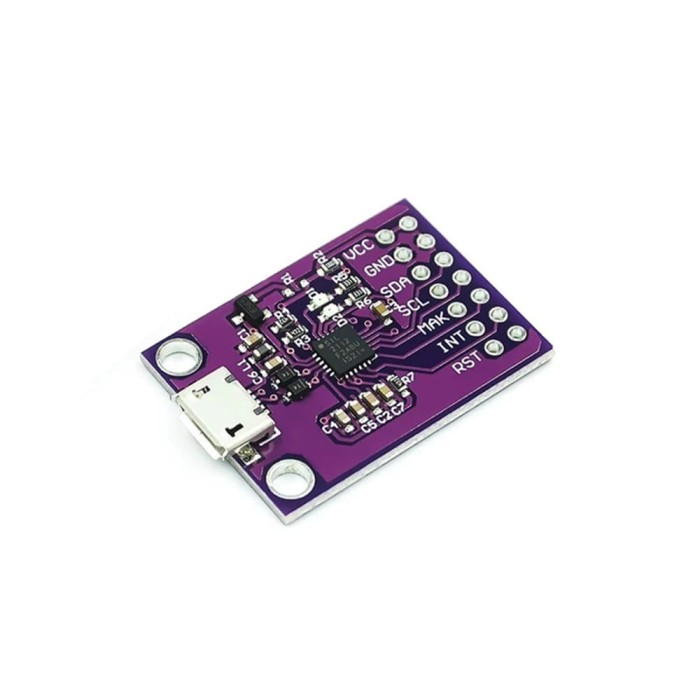

CP2112 USB to SMBus/I2C Converter

[COM-05-091]
Volume discounts:
  • +25 4 % $5.73
  • +50 6 % $5.62
  • +100 7 % $5.51
  • +300 9 % $5.40
  • +500 11 % $5.28
Shop with confidence Learn More
Availability: 328 items
SKU
COM-05-091
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$5.95

The CP2112 USB to SMBus/I2C Converter is a versatile and high-performing tool that allows you to easily connect your USB devices to SMBus and I2C interfaces. With its compact size and easy-to-use design, this converter is suitable for a variety of applications, from data transfer to device control. It supports various baud rates, from 100Kbps to 1Mbps, making it compatible with a wide range of devices.

Equipped with a USB 2.0 interface, the CP2112 converter offers fast and efficient data transfer, saving you time and effort. It also has a built-in SMBus/I2C controller, providing a stable and reliable connection for your devices. With its low power consumption and reliable performance, this converter is a top choice for engineers and hobbyists alike. Upgrade your USB to SMBus/I2C connections with the CP2112 USB to SMBus/I2C Converter and streamline your projects today.

Specification of CP2112 USB to SMBus/I2C Converter:

  • USB bus power supply: 4.0 to 5.25V
  • Self-powered: 3.0 to 3.6V
  • I/O voltage: 1.8V to VDD
  • Working environment temperature: -40 ° C ~ 85 ° C
  • On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output
  • Compliant with USB specification 2.0 standard; full speed (12Mbps)
  • USB suspend status via SUSPEND and /SUSPEND pins
  • Integrated 194-byte one-time programmable ROM for storing customizable product information
  • 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112
  • Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open access interface specifications.
  • 8 GPIOs can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus
  • Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port
