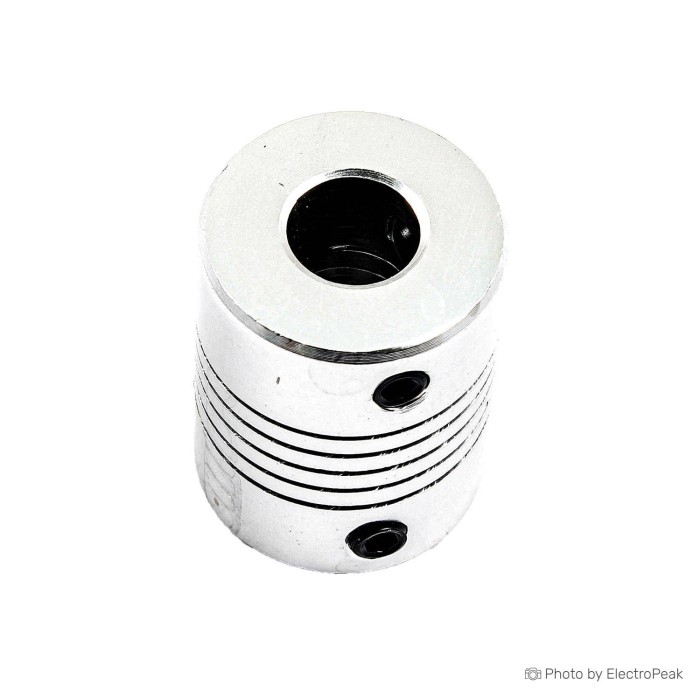

Flexible Shaft Coupling - 8x8 (for 3D Printers)

[3DP-01-078]
Volume discounts:
  • +100 5 % $0.57
  • +300 8 % $0.55
  • +500 10 % $0.54
  • +1000 12 % $0.53
Shop with confidence Learn More
Availability: 2983 items
SKU
3DP-01-078
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.60

The Flexible Shaft Coupling with a 8mm to 8mm size specification is a mechanical component used to connect two shafts with different diameters while allowing for a degree of misalignment and flexibility. This coupling provides a secure and efficient way to transmit torque between shafts while accommodating slight angular or parallel misalignments.

Specificatoins of Flexible Shaft Coupling - 8x8 (for 3D Printers):

  • Coupling Type: Flexible shaft coupling
  • Shaft Sizes: 8mm and 8mm (inner diameters of the coupling)
  • Outside Diameter: 19mm
  • Material:Aluminum alloy 6063
  • Length: 25mm
  • Color:Silver
  • Flexibility: Allows for a certain amount of angular and parallel misalignment between the connected shafts
  • Torque Transmission: Transmits torque from one shaft to another without causing excessive stress or wear on the shafts or bearings
  • Applications: Used in various mechanical systems, such as robotics, CNC machines, 3D printers, and more

Features of Flexible Shaft Coupling - 8x8 (for 3D Printers):

  • Misalignment Compensation: The flexible coupling accommodates slight misalignments between shafts, reducing stress and wear on components.
  • Smooth Torque Transmission: It enables efficient torque transfer between shafts while minimizing vibrations and backlash.
  • Easy Installation: The clamping hub design allows for straightforward installation and removal without disassembling the shafts.
  • Usage Tip:
  • Ensure that the coupling is properly aligned and installed on both shafts. Avoid over-tightening the clamping hubs to prevent excessive stress on the coupling or shafts.
  • Caution:
  • Do not exceed the specified torque capacity of the coupling to prevent damage. Regularly inspect the coupling for wear or damage, especially in high-stress applications.
