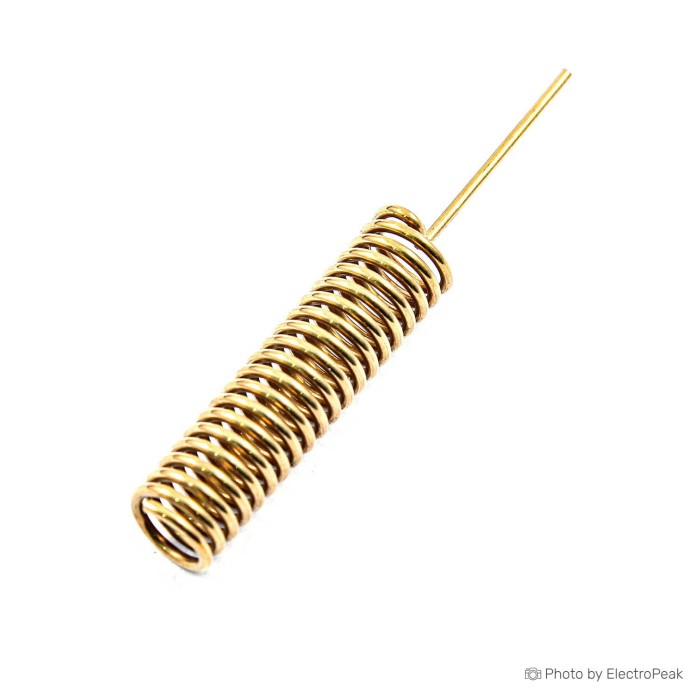

Copper Spring Antenna - 32mm, 433MHz
$0.0680
In stock
SKU
COM-01-023
Volume discounts:
- +100 4 % $0.0650
- +500 6 % $0.0640
- +1000 7 % $0.0630
- +5000 10 % $0.0610
- +10000 12 % $0.0600
Copper Spring Antenna - 32mm, 433MHz is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
IPX UFL Coaxial Female-Female Antenna Extension Cable Previous
Copper Spring Antenna - 32mm, 433MHz is a compact antenna for wireless data transmission systems. It is designed for stable performance in wireless equipment and direct soldering installation. The antenna supports 433MHz operation and uses a 50 ohm input impedance. It also includes a 2dBi gain rating and a direct weldment connector type. This product comes as a pack of 5 pieces.
Features of Copper Spring Antenna - 32mm, 433MHz
- 433MHz frequency
- 2dBi gain
- 50 ohm impedance
- Direct soldering connection
- Compact spring antenna design
- Pack of 5 pieces
Specifications of Copper Spring Antenna - 32mm, 433MHz
- Frequency: 433MHz
- Impedance: 50 ohm
- Weight: 2 g
- Gain: 2dBi
- Wire diameter: 0.6 mm
- Outer wire diameter: 5 mm
- Total length: 32 mm
- Antenna length: 21 mm
- Wire length: 11 mm
- Connector type: Direct soldering
- Operating temperature: -40 to +60°C
- Quantity per pack: 5
How to Use Copper Spring Antenna - 32mm, 433MHz
- Prepare the wireless module or device for soldering.
- Solder the antenna directly to the antenna connection point.
- Install the module and verify the wireless signal.
More Info
- Suitable for wireless data transmission systems.
- Designed for stable signal transfer and reception.
