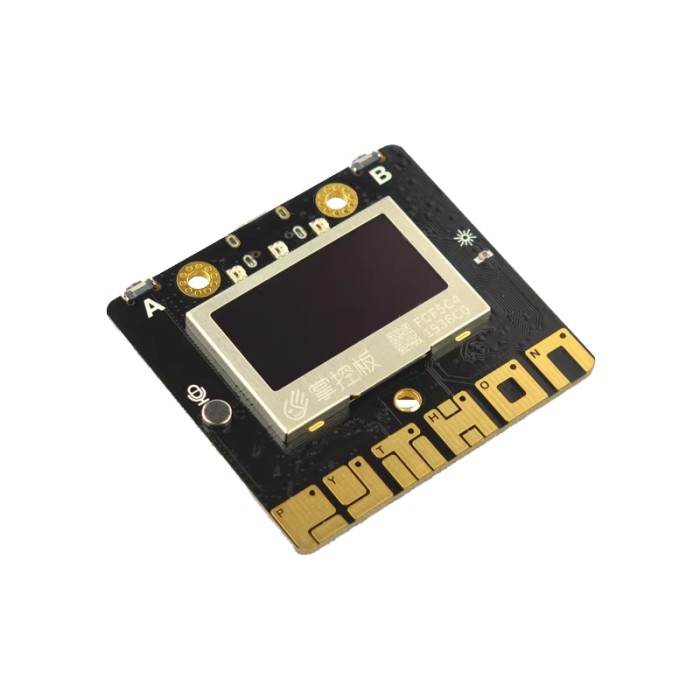

Control Board 2.0 Mind + BXY
$23.9500
In stock
SKU
MIC-07-009
Volume discounts:
- +25 4 % $23.0300
- +50 6 % $22.5700
- +100 8 % $22.1200
- +300 10 % $21.6600
- +500 11 % $21.2000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Control Board 2.0 and Micro:bit IO expansion board Previous
The Control Board 2.0 Mind + BXY is a powerful microcontroller based on the ESP32 platform, designed for IoT applications, robotics, and educational projects. It features a dual-core Tensilica LX6 processor with WiFi and Bluetooth capabilities, a built-in three-axis accelerometer, light sensor, microphone, OLED display, and multiple expansion interfaces for sensor and peripheral connections. This versatile board supports various communication protocols, making it ideal for advanced programming and interactive projects.
Specifications of Control Board 2.0 Mind + BXY
-
Processor: Tensilica LX6 dual-core (up to 240MHz)
-
SRAM: 520KB
-
Flash: 8MB
-
WiFi Protocol: 802.11b/g/n/d/e/i/k/r (up to 150 Mbps)
-
Bluetooth: v4.2 BR/EDR and BLE standards
-
Sensors: Three-axis accelerometer (±2G), light sensor, microphone
-
Display: 1.3-inch OLED (128x64 resolution)
-
LEDs: 3 WS2812 RGB full-color LEDs
-
Buzzer: Passive buzzer
-
Inputs: 2 physical buttons (A/B), 6 touch buttons
-
Expansion: 20 digital I/O (12 PWM, 6 touch input), 5 analog inputs (12-bit ADC)
-
Interfaces: I2C, UART, SPI
-
Supply Voltage: 5V
-
Working Voltage: 3.3V
-
Maximum Operating Current: 200mA
-
Dimensions: 48x52mm
-
Weight: 14.8g
Datasheet of Control Board 2.0 Mind + BXY
| MCU/SoC | ESP32 |
|---|---|
| Product Family | ESP32 |
| Architecture | Tensilica Xtensa LX6 |
| CPU Cores | dual-core |
| Clock Speed (MHz) | 240MHz |
| Flash | 8MB |
| SRAM | 520KB |
| GPIO Pins | 20 |
| Ethernet Support | No |
| ADC Channels | 5 |
| PWM Channels | 12 |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Active Current (mA) | 200mA |
| Wireless | Bluetooth, WiFi |
| Form Factor | 48x52mm |
| IDE Support | Arduino, Mind+ |
| Weight (g) | 14.8g |
| Input Voltage (V) | 5V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 4.2 |
| Wireless Protocol | 802.11b/g/n/d/e/i/k/r (up to 150 Mbps) |
