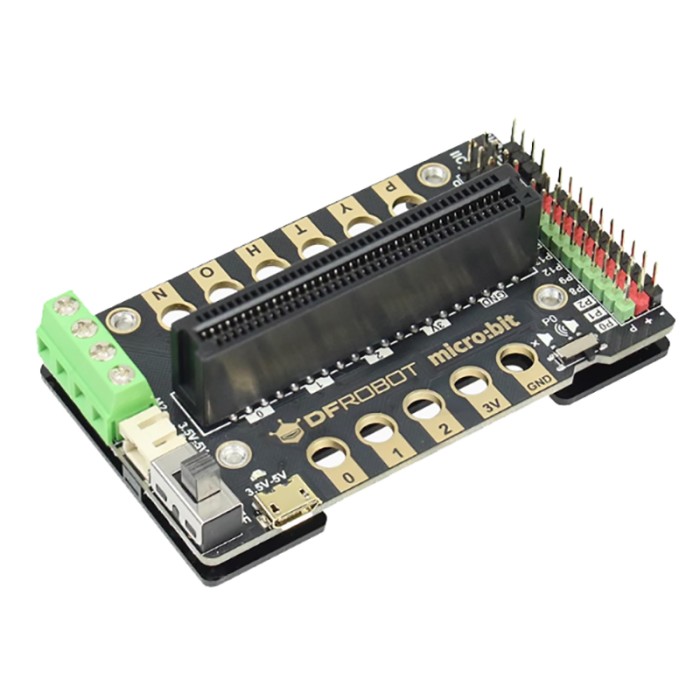

The Control Board 2.0 and Micro:bit IO expansion board is designed to expand the functionality of the Micro:bit controller, providing multiple IO ports, motor drive capabilities, and additional interfaces. It supports external power through AA batteries or a lithium battery and allows for integration with various peripherals. With I2C interfaces and goldfinger pins compatible with LEGO, it offers a versatile platform for educational and interactive projects, especially in robotics and electronic systems.
Specifications of Control Board 2.0 and Micro:bit IO Expansion Board
-
Power Supply: External 3 AA batteries (3.5V~5V) or 3.7V lithium battery, PH2.0 interface
-
USB Power Input: MicroUSB (3.5V~5V)
-
IO Ports: P0, P1, P2, P8, P9, P12, P13, P14, P15, P16
-
I2C Interface: 3× I2C ports
-
Pin Goldfinger: 0, 1, 2, 3V, GND
-
Touch Gold Finger: 6× touch inputs (unique to Master)
-
Buzzer: 1× Microbit buzzer (P0 port)
-
Buzzer Switch: 1× switch for buzzer control
-
Motor Drive: 3× motor drive channels
-
Goldfinger Hole Diameter: 4.8mm, compatible with LEGO
-
Hole Distance: 8mm, compatible with LEGO
-
Protection: Black acrylic base protection
-
Dimensions: ---
Datasheet of Control Board 2.0 and Micro:bit IO Expansion Board
Datasheet: Not available.
