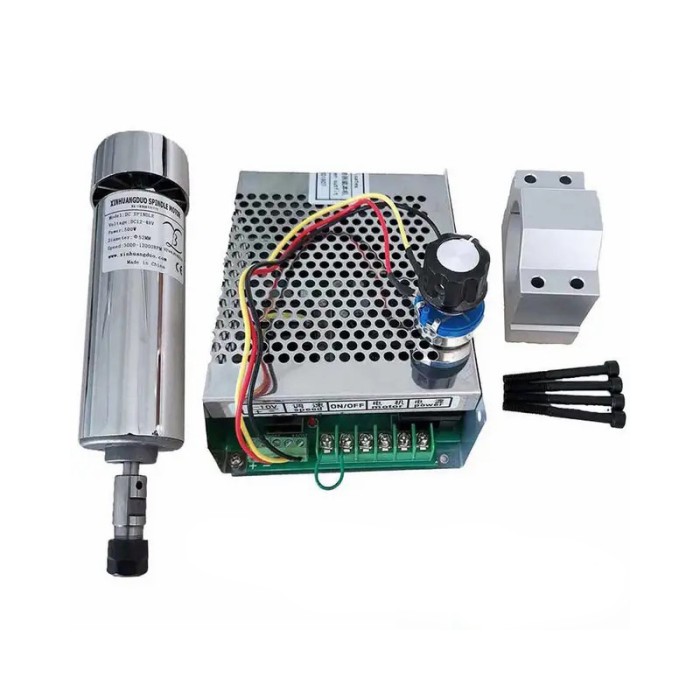

Complete set of spindle 500 watts 48 volts air-cooled
SAVE
As low as $78.9500
In stock
Only %1 left
SKU
CNC-01-003
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
5-Axis CNC Breakout Board w Optical Coupler for Mach3 V2.1 100KHz Previous
The Complete Spindle Set 500W 48V Air-Cooled is designed for carving and milling applications. It includes a brushless DC motor with a wide operating voltage range and multiple speed levels. The spindle set is suitable for working with metal and non-metal materials. A forced air cooling system supports long-term operation. The set also includes a 52mm spindle motor mount bracket.
Features of Complete Spindle Set 500W 48V Air-Cooled
- Brushless DC motor
- Wide operating voltage range
- Multiple speed levels
- Forced air cooling
- Aluminum alloy construction
- 52mm mount bracket included
Specifications of Complete Spindle Set 500W 48V Air-Cooled
- Brand: Brushless DC motor
- Working Voltage: 12-48VDC
- Power: 500W
- Speed: 12V: 3000 rpm
- Speed: 24V: 6000 rpm
- Speed: 36V: 9000 rpm
- Speed: 48V: 12000 rpm
- Torque: 500mN.m
- Insulation Resistance: >2 megaohms
- Insulation Dielectric Strength: 400V
- Diameter: 52mm
- Length of Chuck Part: 35mm (43mm including nut and sandwich)
- Diameter of Chuck Part: 16mm
- Total Length of Motor: 205mm (including clamping parts and motor)
- Radial Runout of Main Shaft: 0.01-0.04mm
- Material: Aluminum alloy
- Cooling Method: Forced air cooling
- Model: 52mm Spindle motor mount bracket
- Diameter: 52mm
- Material: Aluminum alloy
- Included: 1x 52mm Mount Bracket + 4x Screws
How to Use Complete Spindle Set 500W 48V Air-Cooled
- Install the 52mm spindle motor mount bracket.
- Secure the spindle motor in the bracket.
- Connect the motor to a compatible 12-48VDC supply.
- Use the spindle for carving or milling tasks.
More Info
- Suitable for metal and non-metal materials.
- Designed for CNC machines and DIY projects.
