Description

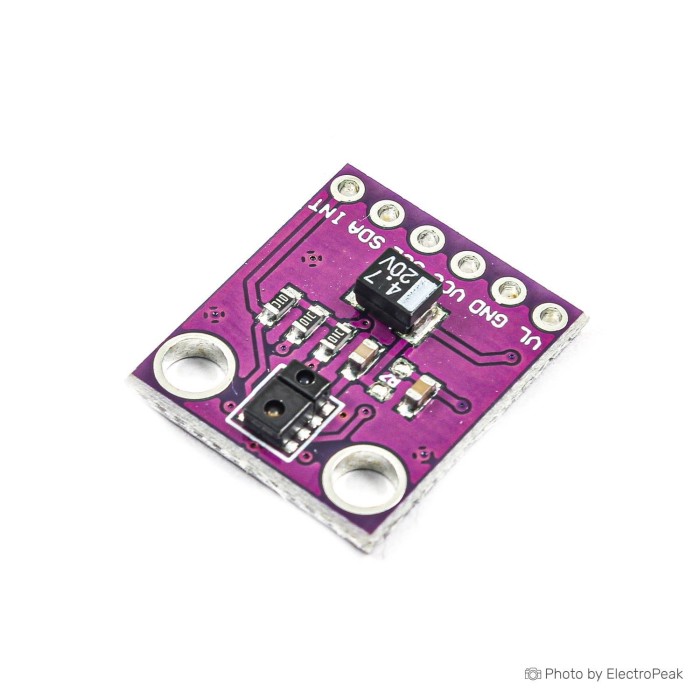

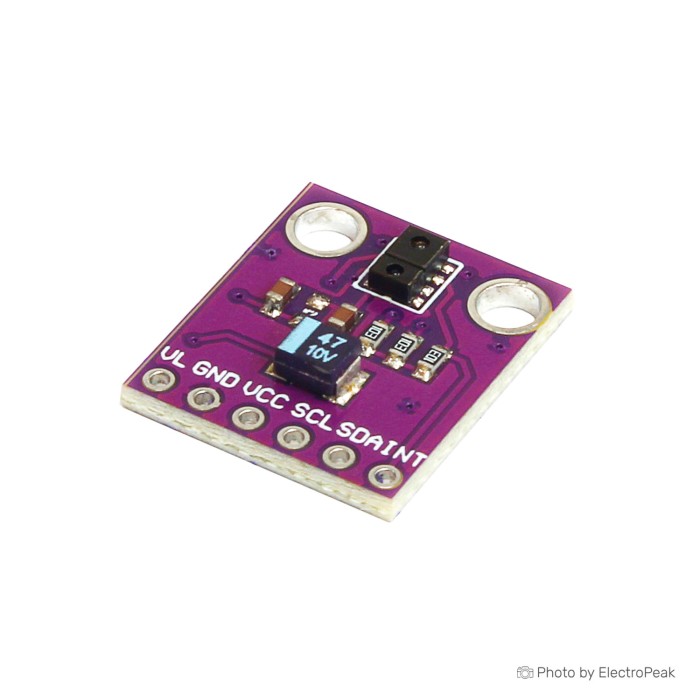

This module based on APDS-9930 that is a digital I2C compatible interface ambient light sensor (ALS) and proximity sensor with IR LED in a single 8 pin package.
The ambient light sensor utilizes dual photodiodes to approximate the human eye response with a low lux performance at 0.01 lux. This high sensitivity allows for the device to operate behind a darkened glass. The proximity sensor is fully calibrated to the detection of objects to 100mm thus eliminating the need for factory calibration of the end equipment or sub-assembly.
The proximity detection feature operates well from bright sunlight to dark rooms. The addition of the micro-optics lenses within the module provides highly efficient transmission and reception of infrared energy which lowers overall power dissipation. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption.
Specifications
ALS, IR LED and Proximity Detector in an Optical Module
Ambient Light Sensing (ALS)
Approximates Human Eye Response
Programmable Interrupt Function with Upper and Lower Threshold
High Sensitivity Operates Behind Darkened Glass
Fully Calibrated to 100 mm Detection
Integrated IR LED and Synchronous LED Driver
Programmable Wait Timer
Dedicated Interrupt Pin
Features
Chip: APDS-9930
Input Voltage: 2.8V ~ 3.8V
Output Type: Digital
ADC: 16 bit
Resolution: 0.01 lux
Interface: I2C (Fast Mode)
Pin Number: 6 Pin
Operating Temperature: -30°C ~ +85°C
Storage Temperature: -40°C ~ +85°C
Size: 18mm x 20mm
