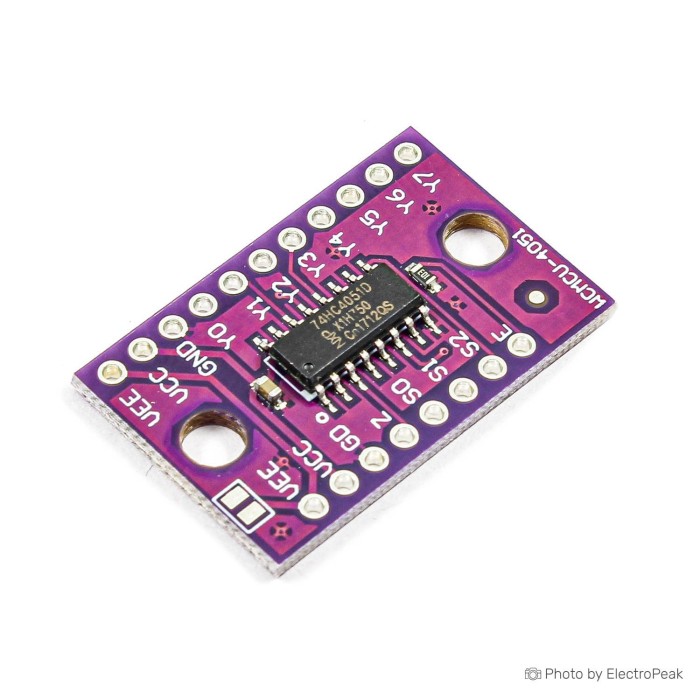

CJMCU 74HC4051 8-Channel Analog Multiplexer Module
$0.6500
In stock
SKU
misc-04-021
Volume discounts:
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 9 % $0.5900
- +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
YwRobot Sliding Potentiometer Module
Previous
Description
74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for
use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features
three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a
common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are
turned off. Inputs include clamp diodes. This enables the use of current limiting resistors
to interface inputs to voltages in excess of VCC.
Features
Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:
80 ohm (typical) at VCC - VEE = 4.5 V
70 ohm(typical) at VCC - VEE = 6.0 V
60 ohm(typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with±5 V analog signals
Typical ‘break before make’ built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Specified from -40„ to +85„ and -40„ to +125„
