The Si5351 is an I2C-configurable clock generator, perfect for replacing crystals, crystal oscillators, VCXOs, phase-locked loops (PLLs), and fanout buffers in cost-sensitive applications. Utilizing a PLL/VCXO and high-resolution MultiSynth fractional divider architecture, the Si5351 can generate any frequency up to 160 MHz on each of its outputs with 0 ppm error. It is available in three versions to suit various applications. The Si5351A generates up to 8 free-running clocks using an internal oscillator, ideal for replacing crystals and crystal oscillators. The Si5351B includes an internal VCXO, offering the flexibility to replace both free-running and synchronous clocks, eliminating the need for expensive custom pullable crystals while ensuring reliable operation over a wide tuning range. The Si5351C provides the same flexibility but synchronizes to an external reference clock (CLKIN).

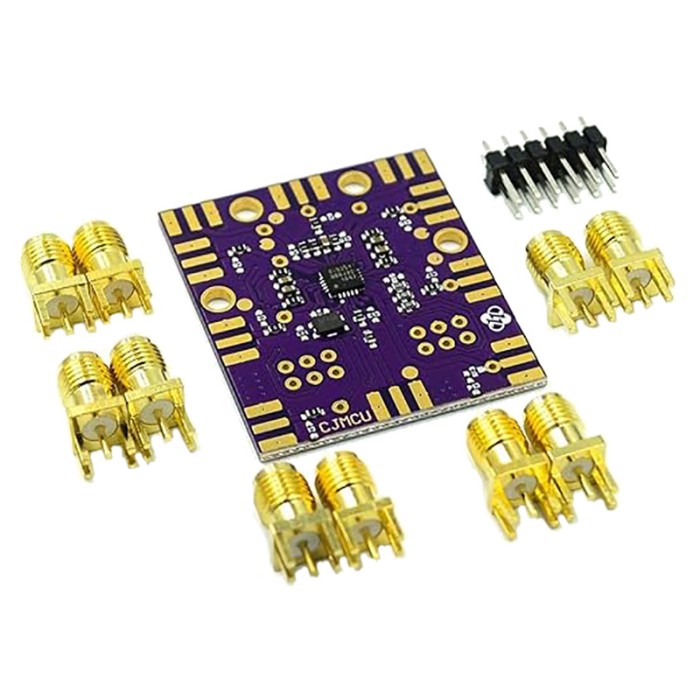

Features and Specification of CJMCU-5351B Signal Generator Module
- Number of Outputs: 8
- Output Frequencies : 8 kHz to 160 MHz
- Communication: I2C
- Crystal Frequency : 25 or 27 MHz
- Operation Voltage: 3.3V
- Very low power consumption
- Dimensions: 38.9x33.9mm
Applications of CJMCU-5351B Signal Generator Module
- HDTV, DVD/Blu-ray, set-top boxes
- Audio/video equipment, gaming
- Printers, scanners, projectors
- Residential gateways
- Networking/communication
- Servers, storage
- XO replacement
Datasheet of CJMCU-5351B Signal Generator Module:
https://www.skyworksinc.com/-/media/SkyWorks/SL/documents/public/data-sheets/Si5351-B.pdf
