CD74HC4067 16-Channel Analog Digital Multiplexer Module
$0.3700
In stock
SKU
misc-04-013
Volume discounts:
- +100 3 % $0.3600
- +500 5 % $0.3500
- +1000 8 % $0.3400
- +5000 11 % $0.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MT8870 DTMF Audio Voice Decoder Module Previous

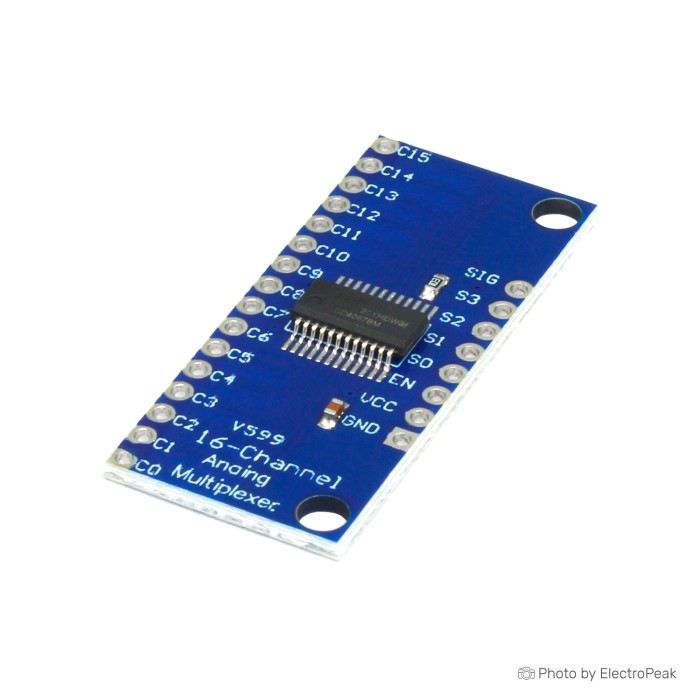

The CD74HC4067 16-Channel Analog Digital Multiplexer Module is an integrated circuit module for expanding available analog input channels in a microcontroller or other digital devices. It provides 16 analog input channels and uses multiplexing to select one channel at a time. Digital control signals are used to choose the active channel. The module does not perform analog-to-digital conversion itself. It is suited for systems that need to read multiple analog sensors or signals with limited analog pins.
Features of CD74HC4067 16-Channel Analog Digital Multiplexer Module
- 16 analog input channels
- Digital channel selection
- Multiplexing support
- Compact size
- ADC required for reading analog data
Specifications of CD74HC4067 16-Channel Analog Digital Multiplexer Module
- Input Voltage: 2V to 6V
- Number of Channels: 16 analog input channels
- Multiplexing: Selects one of the 16 input channels at a time
- Digital Control: Controlled digitally using microcontroller pins
- Analog-to-Digital Conversion (ADC): Does not perform ADC itself
- Size: 1.8x4mm
- On resistance: 70 Ohms @ 4.5V
- 6ns break-for making @ 4.5V
How to Use CD74HC4067 16-Channel Analog Digital Multiplexer Module
- Connect the module to your microcontroller and signals within the supported input voltage range.
- Use digital control signals to select the desired input channel.
- Read the selected analog signal with a microcontroller that has ADC capabilities.
More Info
- Refer to the module's control signal requirements before integration.
- Check voltage levels and connections carefully to avoid damage.
| Platform | Arduino,ESP32 |
|---|---|
| Interface Type | Analog,Digital |
| Operating Voltage (V) | 2 to 6 V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 40x18x3 mm |
| Mounting Type | THT (Through Hole) |
| Function | Multiplexer |
| Weight (g) | 3 |
| Application | ADC measurement in microcontroller systems,Digital and analog multiplexing in control and processing systems,Management of multiple signal inputs using a single output channel,Multiple sensors and monitoring systems,Digital circuits for signal processing, |
| Output Type | Analog Voltage, Digital |
| Chipset | CD74HC4067 |
