TTP224 4-Channel Capacitive Touch Sensor Module
$0.4300
In stock
SKU
SEN-25-017
Volume discounts:
- +100 5 % $0.4100
- +1000 7 % $0.4000
- +5000 9 % $0.3900
- +10000 12 % $0.3800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MPR121 3x4 Capacitive Touch Keypad Module Previous

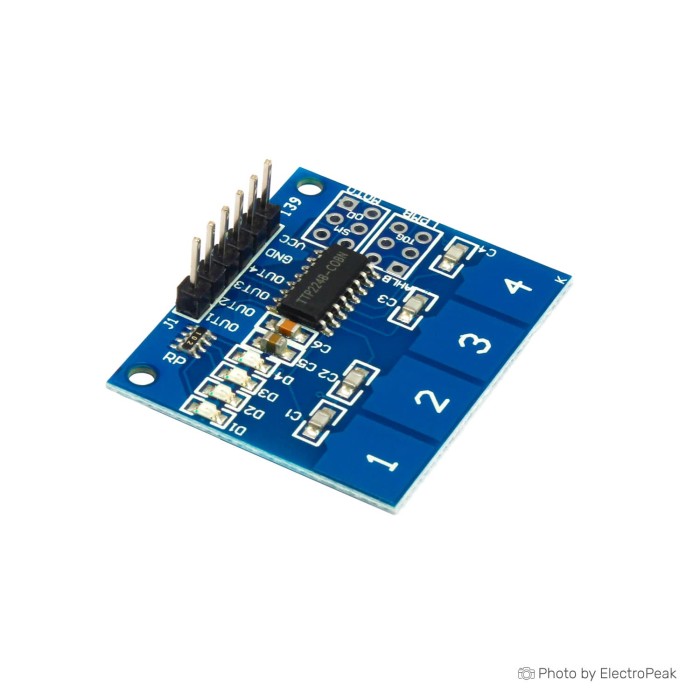

The TTP224 4-Channel Capacitive Touch Sensor Module is a 4 pad touch detector for electronic and control projects. It uses the TTP224 touch sensor chip and provides 4 touch keys for capacitive sensing. The module supports a 2.4 to 5.5V DC supply and is designed as a touch-based alternative to traditional push buttons. It includes 4 output pins, OUT1 to OUT4, and 4 board-level status indicators. Touch input can be applied through conductive materials and through thin non-conductive layers such as glass, plastic, fabric, or wood.
Features of TTP224 4-Channel Capacitive Touch Sensor Module - 2.4V to 5.5V
- 4 capacitive touch keys
- TTP224 touch sensor IC
- 4 board-level status indicators
- Low power selection
- Selectable output and working modes
- Touch through thin material layers
Specifications of TTP224 4-Channel Capacitive Touch Sensor Module - 2.4V to 5.5V
- Chip: TTP224
- Touch keys: 4
- Working voltage: 2.4V - 5.5V DC
- Size: 35mm x 29mm
- Size: 29x35mm
- Output pins: OUT1 - OUT4
- Output level: LOW when idle
- Output level: HIGH when touched
How to Use TTP224 4-Channel Capacitive Touch Sensor Module - 2.4V to 5.5V
- Connect the module to a 2.4 to 5.5V DC supply.
- Use the 4 touch pads as input points for your project.
- Read the output pins OUT1 to OUT4 for touch status.
More Info
- Common touch inputs can include conductive materials.
- Touch sensing can work through glass, plastic, fabric, or wood.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 2.4 - 5.5V DC |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 29x35mm |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Response Time | Very fast to touches |
| Sensing Method | Capacitive |
| Chipset | TTP224 |
| Channels | 4-channel |
| Sensor Model | TTP224 |
| Signal Indicator | Signal output indicator |
