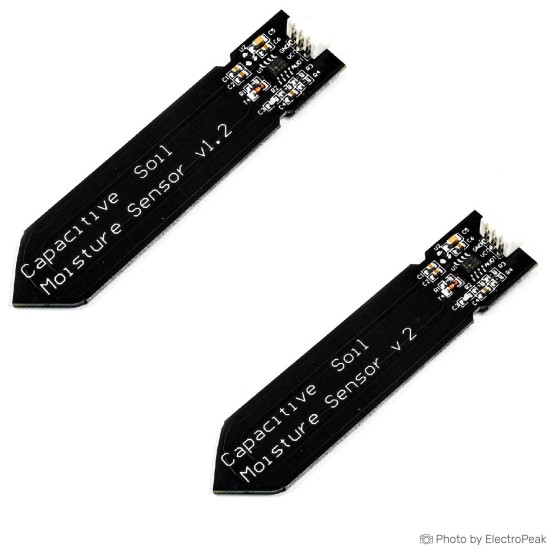

Capacitive Soil Moisture Sensor Module
SAVE
As low as $0.3000
In stock
Only %1 left
SKU
SEN-10-047
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HTC-1 LCD Digital Temperature & Humidity Meter Previous
Capacitive Soil Moisture Sensor Module is an analog soil moisture sensor for measuring soil water content by capacitive sensing. Its electrode section measures moisture through changes in capacitance caused by the amount of water in the soil. The module is designed with a contactless electronic section, helping resist corrosion and oxidation. It includes a sensitivity adjustment function and a simple 3-pin connection structure. The module can be used with a microcontroller, relay, and water pump in smart greenhouse and automated irrigation systems.
Features of Capacitive Soil Moisture Sensor Module - 3.3V To 5V
- Capacitive soil moisture sensing
- Analog output
- Sensitivity adjustment
- Corrosion-resistant design
- 3-pin connection
Specifications of Capacitive Soil Moisture Sensor Module - 3.3V To 5V
- Operating voltage: 3.3 to 5 volts
- Output voltage: 0 to 3 volts
- Weight: 15 grams
- Connector: PH2.0-3P
- Dimensions: 99x22 mm
- Pin count: 3 pins
- Operating voltage: 3.3V ~ 5.5V DC
- Output voltage: 0V ~ 3.0V DC
- Operating current: 5mA
- Output type: Analog
- Pin number: 3 Pins
- Size: 98mm x 23mm
How to Use Capacitive Soil Moisture Sensor Module - 3.3V To 5V
- Insert the sensor into the soil.
- Connect the 3-pin interface to your control circuit.
- Read the analog output to monitor soil moisture.
More Info
- Suitable for smart greenhouse systems.
- Designed for automated irrigation applications.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3 - 5V |
| Dimensions (mm) | 99x22 mm |
| Output Type | Analog Voltage |
| Environmental Parameter | Humidity |
| Probe Type | Probe Style |
| Weight (g) | 15 |
