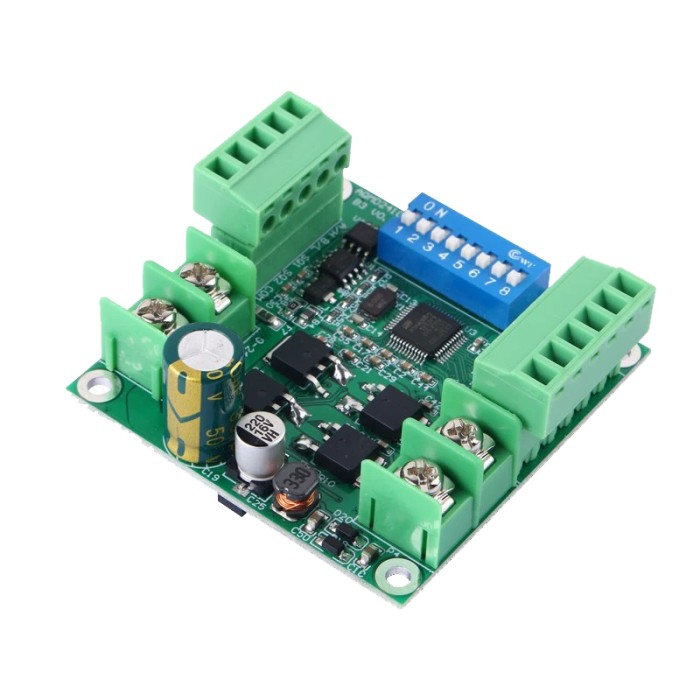

The CAN/RS485 180W DC Motor Driver is a versatile and powerful motor controller that manages various motor control applications. This module supports multiple control signal types and offers comprehensive protection features to ensure safe and reliable operation. It has advanced functionalities such as PID regulation, bidirectional speed control, and robust communication protocols, making it suitable for complex industrial environments.
Specifications of CAN/RS485 180W DC Motor Driver
- Dimensions: 55 x 55 x 28mm
- Control Signal Types: Single/double potentiometers, 0-10V single-ended analog signal, -3.3~+3.3V differential analog signal, PWM, frequency, logic level, switch quantity, RS485/CAN
- Motor Control Methods: Duty cycle speed regulation, torque limiting control, self-test speed closed-loop speed regulation, external speed measurement generator closed-loop speed regulation, external pulse feedback/encoder closed-loop speed regulation, custom process control
- Power Supply Voltage Range: 9-24V
- Rated Current: 7.5A
- Maximum Output Current: 16A (current doubling)/10A (non-current doubling)
- Double Current Output: Supported
- Protection Features: Overload current limiting, locked rotor shutdown, abnormal high current shutdown, internal temperature measurement, overheat current limiting/shutdown, power supply voltage measurement, overvoltage/Undervoltage shutdown, and short circuit protection.
- Communication Protection: 485/CAN common mode voltage protection, ESD protection
How to Use CAN/RS485 180W DC Motor Driver
Dip Switch Configuration
Control Method Configuration:
| SW1-SW7 | SW8 | Control Method |
|---|---|---|
| Arbitrary | OFF | Analog signal control method |
| Arbitrary | ON | 485 communication control mode |
Configuration of Motor Rated Current:
| SW1-SW3 | SW4-SW7 | SW8 | Motor Rated Current Value |
|---|---|---|---|
| OFF OFF OFF | Arbitrary | OFF | Use the rated current configured by the serial port, default is 7A |
| ON OFF OFF | Arbitrary | OFF | 1A |
| OFF ON OFF | Arbitrary | OFF | 2A |
| ON ON OFF | Arbitrary | OFF | 3A |
| OFF OFF ON | Arbitrary | OFF | 4.5A |
| ON OFF ON | Arbitrary | OFF | 6A |
| OFF ON ON | Arbitrary | OFF | 7.5A |
| ON ON ON | Arbitrary | OFF | 10A (lasts for 30 seconds) |
Configuration of Speed Regulation Mode:
| SW5-SW7 | SW8 | Speed Mode |
|---|---|---|
| OFF OFF OFF | OFF | Potentiometer (0~5V analog signal duty cycle speed regulation) |
| OFF ON OFF | OFF | -5V~+5V differential analog signal duty cycle speed regulation |
| ON ON OFF | OFF | Potentiometer (0~5V analog signal torque control) |
| OFF OFF ON | OFF | Potentiometer (0~5V analog signal self-speed detection closed-loop speed regulation) |
| OFF ON ON | OFF | Potentiometer (0~5V analog signal external speed measurement generator closed-loop speed regulation) |
| ON ON ON | OFF | Preset forward and reverse speed control |
Stall Time Configuration:
| SW4 | SW8 | Control Method |
|---|---|---|
| OFF | OFF | Use the serial port to configure the stall time, by default no stall braking is performed. |
| ON | OFF | Limit brake (brake) is applied after stalling for 1s |
More Information about CAN/RS485 180W DC Motor Driver
You can read the instructions for using this product by downloading this PDF file.
