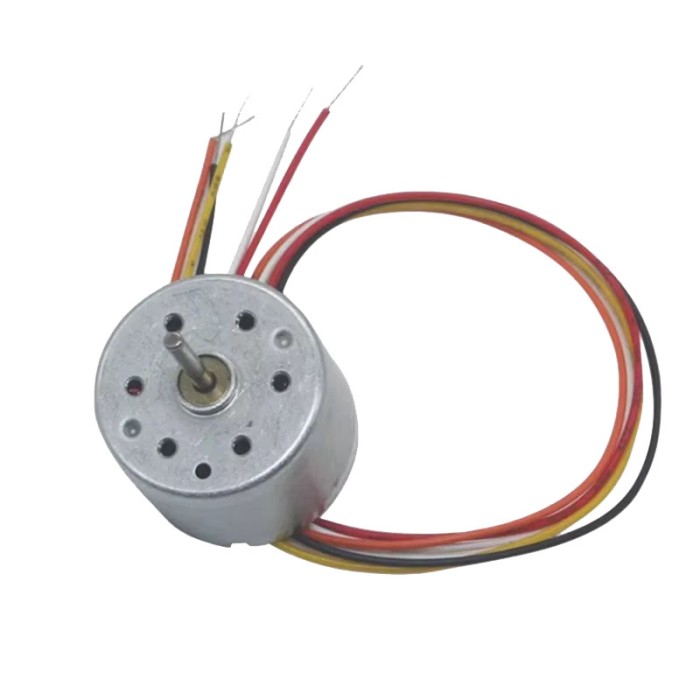

Brushless Motor 310 BLDC

[MTR-03-001]
Shop with confidence Learn More
Availability: 707 items
SKU
MTR-03-001
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$2.75

The 310 BLDC Brushless Motor is a compact, high-performance motor that features an integrated brushless drive circuit, supporting both forward and reverse rotation. Speed regulation is achieved via a 10-20 kHz PWM signal, making it ideal for applications requiring precise control. The motor provides speed signal feedback for monitoring, but this requires a pull-up resistor. With a nominal voltage of 24V, the motor operates in the 8V-24V range, allowing for adjustable speed based on the input voltage.

Specifications of 310 BLDC Brushless Motor

  • Model: B2418 Brushless Motor

  • Nominal Voltage: 24V (Operating Voltage: 8V-24V)

  • No-load Speed:

    • 8V: 2400 RPM, 0.02A

    • 12V: 3800 RPM, 0.03A

    • 24V: 8000 RPM, 0.04A

  • PWM Speed Control: 10-20 kHz

  • Weight: 30g

  • Feedback: Speed signal feedback (requires pull-up resistor)

  • Dimensions: ---

  • Rotation: Forward and reverse support

Datasheet of 310 BLDC Brushless Motor
