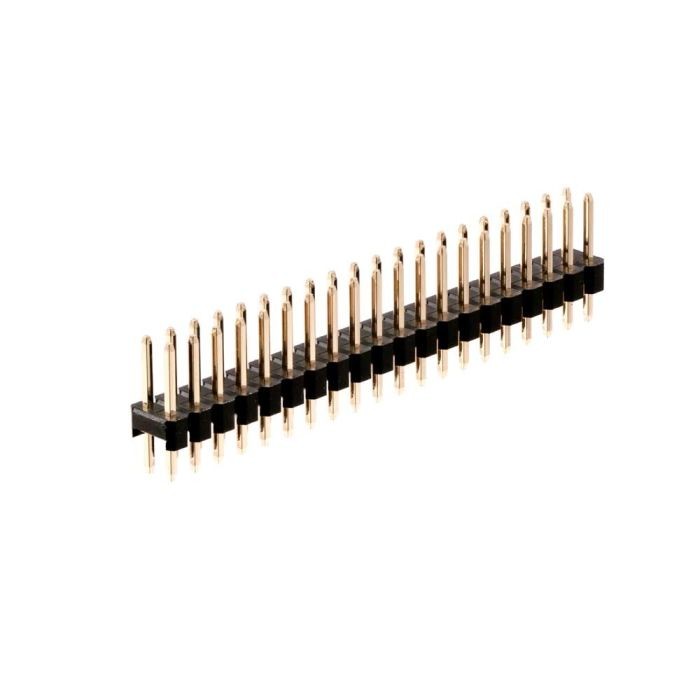

The 2x20 Pin Male Header with a 2.54mm pitch is a fundamental electronic component commonly used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a double row of 40 pins spaced at a standard 2.54mm interval, making it compatible with various boards, modules, and components.
Specificatoins of 2x20 Pin Male Header - 2.54mm Pitch:
- Connector Type: Male header with 2 row of 20 pins each (total of 40 pins)
- Pin Pitch: 2.54mm (0.1 inches)
- Pin Configuration: 2x20 configuration, meaning a two row of 20 pins
- Mounting angle: Straight needle
- Color:Black
Features of 2x20 Pin Male Header - 2.54mm Pitch:
- High-Density Connectivity: The 2x20 pin male header offers a high number of pins in a compact form factor, suitable for densely packed designs.
- Versatile Interface: Use it to connect a wide range of components, modules, or devices, enabling complex circuitry and interconnections.
- Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
- Usage Tip:
- Solder the 2x20 pin male header onto a PCB to provide a large number of connection points for interfacing with various components, modules, or devices. Ensure proper alignment and spacing during soldering.
- Caution:
- Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.
How to Use 2x20 Pin Male Header - 2.54mm Pitch:
Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
