SYB-120 Breadboard - 175x46x8.5mm
$0.9900
In stock
SKU
CAB-01-006
Volume discounts:
- +50 6 % $0.9300
- +100 9 % $0.9000
- +300 13 % $0.8600
- +500 16 % $0.8300
- +1000 19 % $0.8000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MB-102 Breadboard - 165x55x10mm Previous

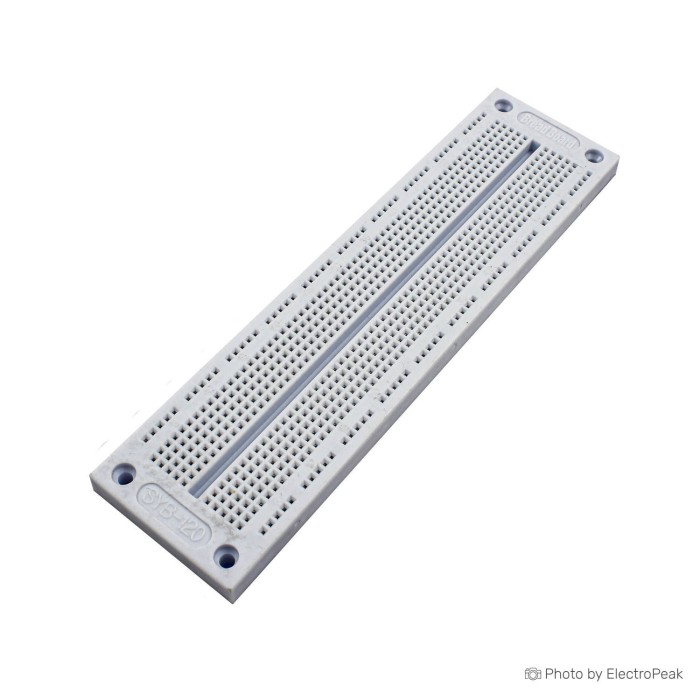

SYB-120 Breadboard is a solderless breadboard for temporary circuit assembly, testing, and primary design work. It features a white rectangular body with 700 holes for component placement and wiring experiments. The breadboard uses ABS plastic and phosphor bronze nickel plated spring clips. It is designed for educational projects, lab work, and R&D prototyping. The board supports standard 2.54mm pitch connections and 21 to 26 AWG wires.
Features of SYB-120 Breadboard - 175x46x8.5mm
- Solderless circuit assembly
- 700-hole layout
- Colored coordinates for placement
- Phosphor bronze nickel plated spring clips
- Reusable breadboard design
- White ABS plastic body
Specifications of SYB-120 Breadboard - 175x46x8.5mm
- Model: SYB-120
- Hole count: 700 (12X70)
- Dimensions: 175x45x8.5 mm
- Dimensions: 165x55mm
- Pitch: 2.54 mm
- Color: White
- Material: ABS Plastic
- Maximum current: 3 Amps
- Terminal strip tie-point: 600
- Distribution strip tie-point: 100
- Wire standard: 21 to 26 AWG
How to Use SYB-120 Breadboard - 175x46x8.5mm
- Place electronic components into the breadboard holes.
- Insert wires using the 2.54mm pitch layout.
- Build and test the circuit without soldering.
- Adjust the circuit as needed during prototyping.
More Info
- Suitable for temporary circuit wiring and experiment setup.
- Used for educational and R&D projects.
