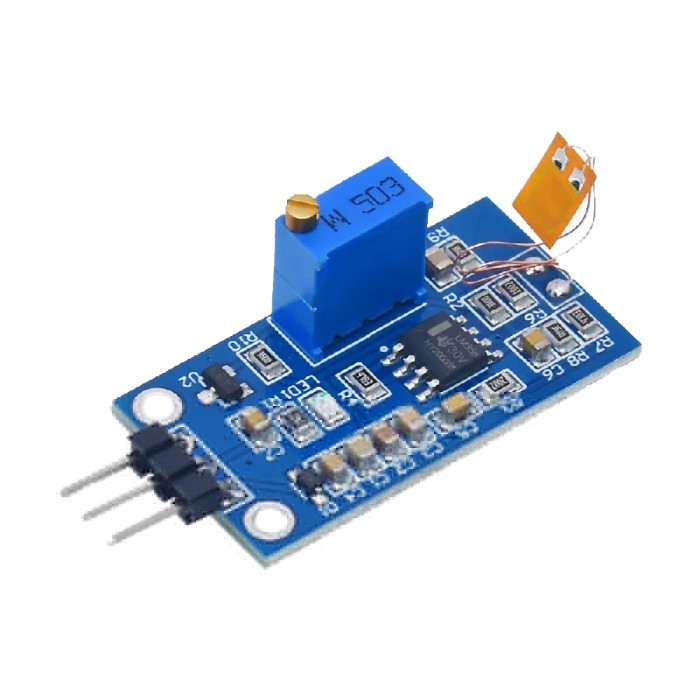

BF350 Strain Gauge Sensor Module

The Strain Gauge Sensor Module BF350 is a precise and reliable component used to measure strain in various materials. This module converts the mechanical deformation (strain) into a corresponding change in electrical resistance, allowing for accurate detection of force, weight, and pressure changes. It is widely used in applications such as structural health monitoring, load cells, and industrial automation. The BF350 module is designed for easy integration and high sensitivity, making it suitable for both experimental and practical use.

Specifications of Strain Gauge Sensor Module BF350

• Supply voltage: 5V
• Output: Analog voltage DC 0-5V
• Computer communication: not supported
• Wireless communication: not supported
• Supported models: 350 ohms single bridge strain gauge
• Measuring direction: One/Two direction
• Measurement accuracy: normal
• Data processing: Own analysis/processing data
• Graph: none
• Collection frequency: no parameters
• Function application: Deformation change simple measurement
• Initial voltage adjustment potentiometer resistance: 1KΩ
• Module size: length 32mmwidth 20mmheight 13.5mm
• Hole specification: M2

Datasheet and user manual of Strain Gauge Sensor Module BF350

For more information about this module and how to use it, please refer to following user manual.
