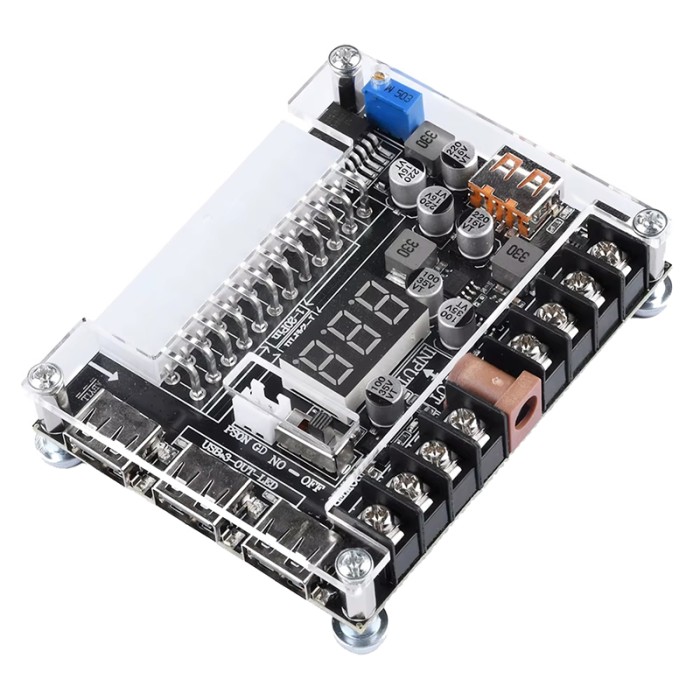

The ATX Power Supply Adapter Breakout with USB is a versatile module designed to adapt standard 20-pin and 24-pin ATX computer power supplies. This module offers multiple outputs, including +12V, -12V, +5V, 5VSB, and 3.3V, and features 3 USB ports with fast charging capabilities. Equipped with a voltage display, it allows real-time monitoring of the output voltages. Its user-friendly design includes switches for easy operation and multiple on-board interfaces to facilitate various connections.
Specifications of ATX Power Supply Adapter Breakout with USB
-
Terminal Output Voltage: +12V, -12V, +5V, 5VSB, 3.3V
-
USB Outputs:
-
3 USB Ports with 5V, 0.1A-2.1A output
-
Orange USB Port (Fast Charging): 5-12V, 2A
-
1 Type-C Interface: Supports PD2.0/PD3.0, 5V/9V, 2A output
-
-
DC Socket Interface: Supports input/output (DC12V-24V)
-
Compatibility: 20-pin and 24-pin ATX power supplies
-
Additional Features: Voltage display for real-time monitoring, high current wiring terminals, and reserved XH2.54-2P terminals
-
Dimensions: ---
How to use of ATX Power Supply Adapter Breakout with USB
-
Connect the ATX power supply: Plug in the 20-pin or 24-pin connector to the corresponding port on the breakout module.
-
Power on using the switch: Use the provided switches to turn on the power supply easily.
-
Monitor voltages: Check the voltage display for real-time monitoring of output voltages.
-
Utilize USB and DC ports: Use the USB ports and DC socket for charging devices, powering gadgets, or testing circuits.
Datasheet of ATX Power Supply Adapter Breakout with USB
Datasheet: Not available
