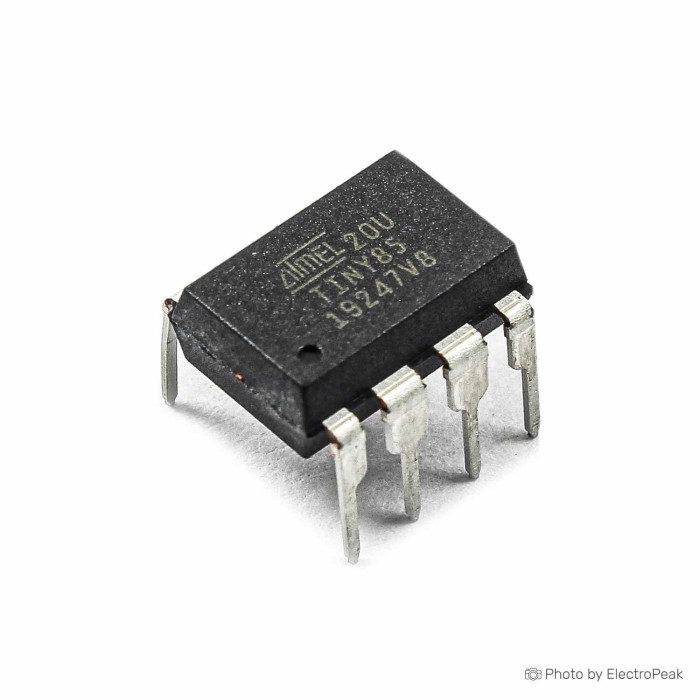

ATtiny85-DIP IC Microcontroller

The ATtiny85-DIP IC Microcontroller is a compact 8-bit microcontroller from the AVR Tiny family. It is designed for small-scale and medium electronics projects. The device supports logic operations, data processing, and communication with external components. It includes programmable FLASH and EEPROM memory, timers, PWM, and ADC support. This ATtiny85-DIP IC Microcontroller is suitable for DIY projects, simple control systems, Arduino replacement in basic projects, and USB AVR programming.

Features of ATtiny85-DIP IC Microcontroller

• 8-bit AVR Tiny core
• Compact DIP package
• I2C, SPI, and UART/USART support
• PWM and ADC support
• Memory lock feature
• JTAG interface support

Specifications of ATtiny85-DIP IC Microcontroller

• Controller Series: AVR Tiny
• Core Size: 8-bit
• RAM: 512 bytes
• EEPROM: 512 bytes
• Program Memory (Flash): 8 KB
• Write/Erase Cycles: 10,000 for Flash, 100,000 for EEPROM
• 16-bit Timers: 4
• 8-bit Timers: 2
• GPIO Pins: 6
• Total Pins: 8
• Package: DIP
• Operating Voltage: 4.5V to 5.5V DC
• PWM Channels: 4
• ADC Channels: 8 channels, 10-bit resolution
• Operating Temperature Range: -40°C to +85°C
• Maximum Speed: 16MHz
• Communication Protocols: I2C, SPI, UART/USART
• JTAG Interface: Supported
• Analog Comparator: Included
• Memory Lock Feature: Yes, for software protection
• QTouch® Library Support: Yes
• Interrupt Sources: Internal and external
• Flash (Kbytes): 8 Kbytes
• Pin Count: 8
• Max. Operating Frequency: 20 MHz
• Power Supply: 2.7 - 5.5V
• Operational Range: Industrial (A) (-40°C to 85°C)
• CPU: 8-bit AVR
• Hardware QTouch Acquisition: No
• Max I/O Pins: 6
• Ext Interrupts: 6
• USB Speed: No
• USB Interface: No

How to Use ATtiny85-DIP IC Microcontroller

1. Provide the required supply voltage within the supported range.
2. Connect the desired I/O, communication, and control lines.
3. Program the microcontroller using the supported interface and memory features.

More Info

• Suitable for DIY and educational projects
• Suitable for logic control systems in electronics
• Suitable for Arduino replacement in basic applications
• Suitable for USB AVR development tasks
