Description
AVR and 8051 ISP Programmer is a low-cost USB based programmer. Easy to use, works with AVRDude, and is tested extensively on a Windows, Linux desktop. This is ISP(In-System Programmer) programmer therefor you can program your target microcontroller without removing it from your development board.
USBISP is a device that is used to program microcontrollers with ISP capabilities. It has a USB port at one end and ISP pins at the other. for Example- The first device that you see is a USBASP. The second one is an AVRISP.
In-system programming (ISP), also called in-circuit serial programming (ICSP), is the ability of some programmable logic devices, microcontrollers, and other embedded devices to be programmed while installed in a complete system, rather than requiring the chip to be programmed prior to installing it into the system.
USBasp is an ICSP adapter that allows you to install new bootloaders and firmware on common AVR microcontrollers, such as those used in Arduino-compatible boards.
Works under multiple platforms. Linux, Mac OS X, and Windows are tested.
No special controllers or SMD components are needed.
Programming speed is up to 5kBytes/sec.
SCK option to support targets with low clock speed (< 1,5MHz).
Planned: serial interface to target (e.g. for debugging)
Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits, and lock bits
With power and programming two indicators
On-board over-current protection
Support 5V and 3.3V power supply for the target board
Features

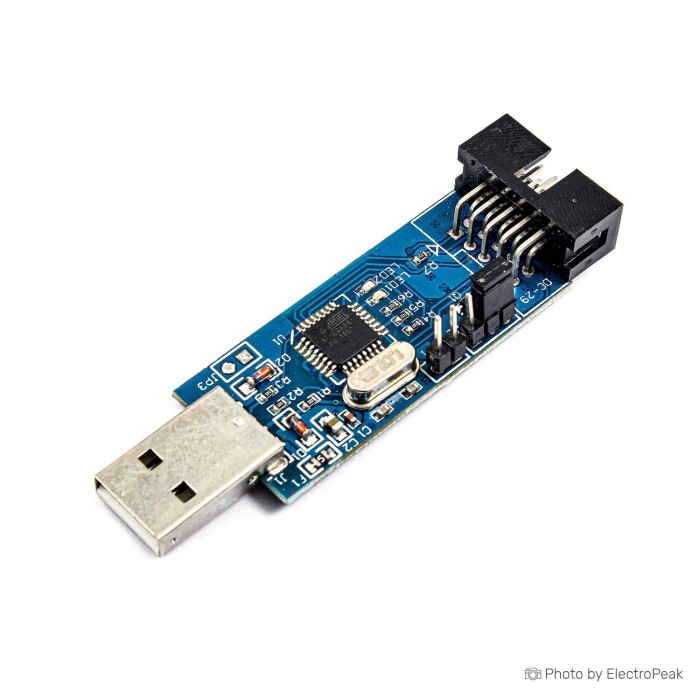

Onboard ATMega8(L)chip
Power and status LEDs
USB port power supply
On-board short circuit, over-current protection
Ability to the power target board (5V/3.3V)
Supports S51 and the AVR chips
Fast and stable Standard IDC 10PIN interface
Suitable for WIN8.1 / 8/7 / XP 32 bit / 64-bit computer systems.
No need to install drivers

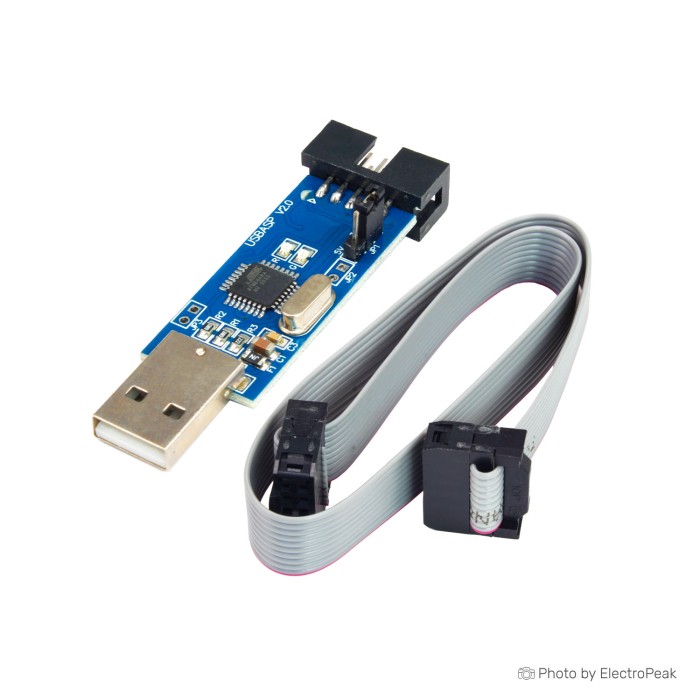

Pin number: 10 Pin
Cable length: 20cm
Module size: 65mm x 22mm x 12mm
Supported chips:
51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252
AVR Series: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.
