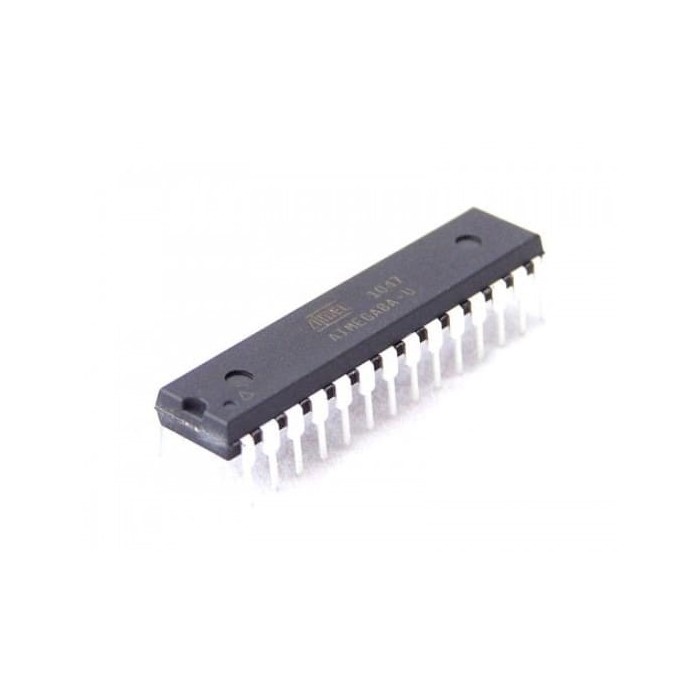

ATMEGA8A-PU, 10 bit 16 MHz megaAVR Microcontroller, SPDIP-28
[S2-0022]
Volume discounts:
- +100 7 % $1.63
- +300 9 % $1.59
- +500 11 % $1.55
- +1000 14 % $1.51
Shop with confidence
Learn More
Availability:
SKU
S2-0022
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.75
The ATMEGA8A-PU microcontroller is a high-performance, low-power 8-bit microcontroller based on the AVR® RISC architecture. This chip features 8KB of in-system programmable flash memory, 512 bytes of EEPROM, and 1KB of internal SRAM. With 130 powerful instructions, most executing in a single clock cycle, it achieves up to 16 MIPS throughput at 16 MHz. The ATMEGA8A-PU comes in a 28-pin PDIP package and is suitable for various applications.
Specifications of ATMEGA8A-PU Microcontroller
- Architecture: 8-bit AVR® RISC
- Flash Memory: 8KB in-system programmable
- EEPROM: 512 bytes
- Internal SRAM: 1KB
- Instruction Set: 130 powerful instructions
- Operating Frequency: Up to 16 MHz
- Performance: Up to 16 MIPS
- Operating Voltage: 2.7 to 5.5 volts
- I/O Pins: 23 programmable lines
- Timers/Counters: Two 8-bit and one 16-bit
- PWM Channels: Three
- Analog-to-Digital Converter (ADC): 6 channels with 10-bit resolution
- Serial Interfaces: Programmable USART, Master/Slave SPI, Two-wire interface
- Package: 28-pin PDIP
| Package | SPDIP-28 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| ADC Resolution | 10 bit |
| Mounting Type | Through Hole |
| Components - Type | 8-bit Microcontrollers - MCU |
| Maximum Clock Frequency | 16 MHz |
| Processor Series | megaAVR |
