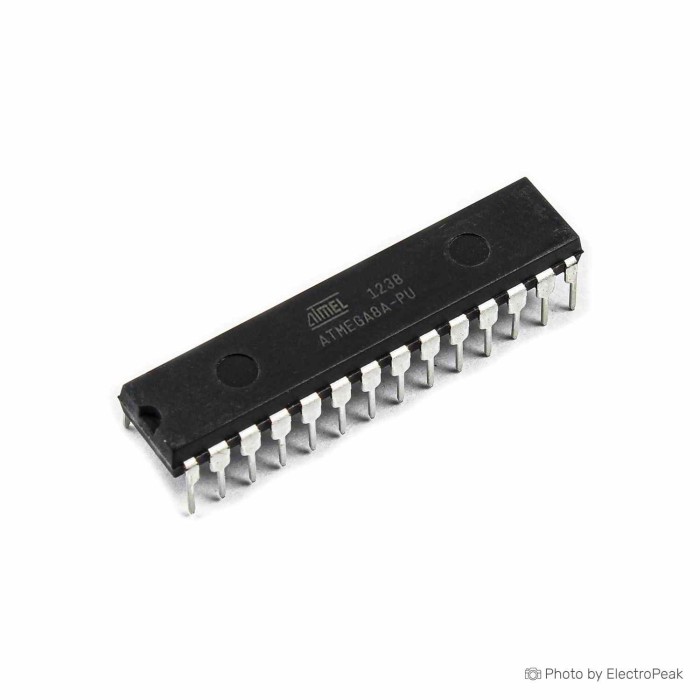

ATMEGA8A-PU IC Microcontroller (DIP)

ATMEGA8A-PU IC Microcontroller (DIP-28) is an Atmega8A family 8-bit AVR RISC-based microcontroller. It combines high performance with low power operation and supports 16 MIPS throughput at 16 MHz. The device includes 8KB ISP flash memory, 1KB SRAM, and 512B EEPROM. It also features debugWIRE for on-chip debugging and operates between 4.5-5.5 volts. This ATMEGA8A-PU IC Microcontroller (DIP-28) is designed for compact embedded electronics and microcontroller projects.

Features of ATMEGA8A-PU IC Microcontroller (DIP-28)

• 8-bit AVR RISC architecture
• 32 x 8 general purpose working registers
• Fully static operation
• 16 MIPS throughput at 16 MHz
• On-chip 2-cycle multiplier
• 8KB ISP flash memory
• 1KB SRAM
• 512B EEPROM
• Write/erase cycles: 10,000 Flash/100,000 EEPROM
• Optional boot code section with independent lock bits
• In-system programming by on-chip boot program
• True read-while-write operation
• Programming lock for software security
• Extensive on-chip debug support
• 7-channel/10-bit A/D converter
• 8 single-ended channels
• Byte-oriented two-wire serial interface
• Programmable serial USART
• Master/slave SPI serial interface
• Programmable watchdog timer with separate on-chip oscillator

Specifications of ATMEGA8A-PU IC Microcontroller (DIP-28)

• Product Type: IC Microcontroller
• Family: Atmega8A
• Package: DIP-28
• Architecture: 8-bit AVR RISC-based
• Flash Memory: 8KB ISP
• SRAM: 1KB
• EEPROM: 512B
• A/D Converter: 7-channel/10-bit
• Throughput: 16 MIPS
• Clock Frequency: 16 MHz
• Operating Voltage: 4.5-5.5 volts
• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

How to Use ATMEGA8A-PU IC Microcontroller (DIP-28)

1. Place the microcontroller in a compatible DIP-28 circuit design.
2. Program the device using in-system programming or the on-chip boot program.

More Info

• Supports on-chip debugging with debugWIRE.
• Includes features for low-power embedded control projects.
