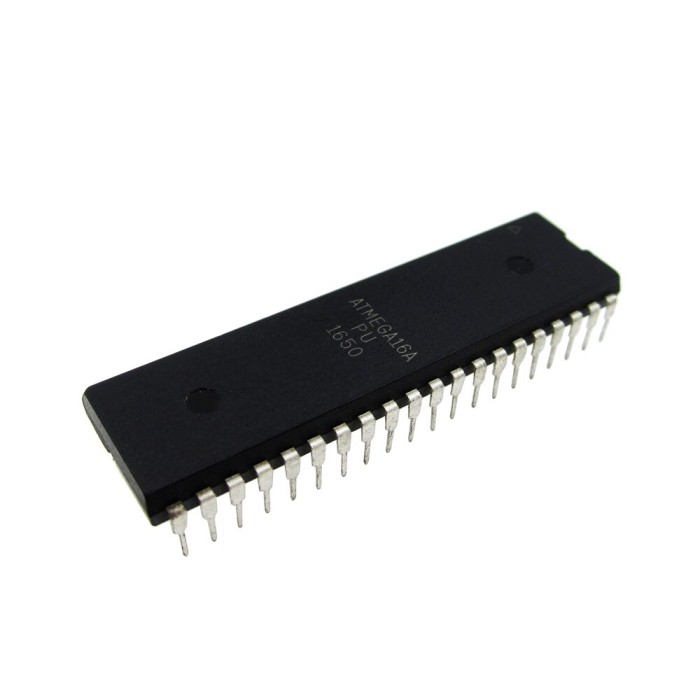

ATmega16A-PU IC Microcontroller (DIP)

ATmega16A-PU IC Microcontroller is a DIP microcontroller chip with through-hole mounting and a 2*20 pin configuration. It includes JTAG, SPI, and USART connectors for standard interface options. The device operates with an input voltage of 2.7-5.5 -volt and a clock frequency of 8MHz. It offers 16KB storage and is identified by the part number ATMEGA16A-PU. The environmental temperature range is -40~+85 ℃.

Features of ATmega16A-PU IC Microcontroller - 16KB, 8MHz, 40 Pins

• 16KB storage
• JTAG, SPI, and USART connectors
• 8MHz clock frequency
• Through-hole mounting
• 2*20 pin configuration

Specifications of ATmega16A-PU IC Microcontroller - 16KB, 8MHz, 40 Pins

• Storage: 16KB
• Connector: JTAG, SPI, USART
• Clock frequency: 8MHz
• Product Type: Chip
• Input Voltage: 2.7-5.5 -volt
• Mounting Style: Through Hole
• Pin Configuration: 2*20
• Pins: 40
• Part Number: ATMEGA16A-PU
• Environmental Temperature: -40~+85 ℃

How to Use ATmega16A-PU IC Microcontroller - 16KB, 8MHz, 40 Pins

1. Mount the chip using the through-hole package.
2. Connect the required interface through JTAG, SPI, or USART.
3. Apply an input voltage between 2.7-5.5 -volt.

More Info

• DIP IC microcontroller format
• Part number ATMEGA16A-PU
