AT24CXX EEPROM Memory Module- I2C Interface
$0.6000
In stock
SKU
misc-09-002
Volume discounts:
- +50 3 % $0.5800
- +100 5 % $0.5700
- +300 8 % $0.5500
- +500 10 % $0.5400
- +1000 12 % $0.5300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Ultrasonic Humidifier Motherboard Previous

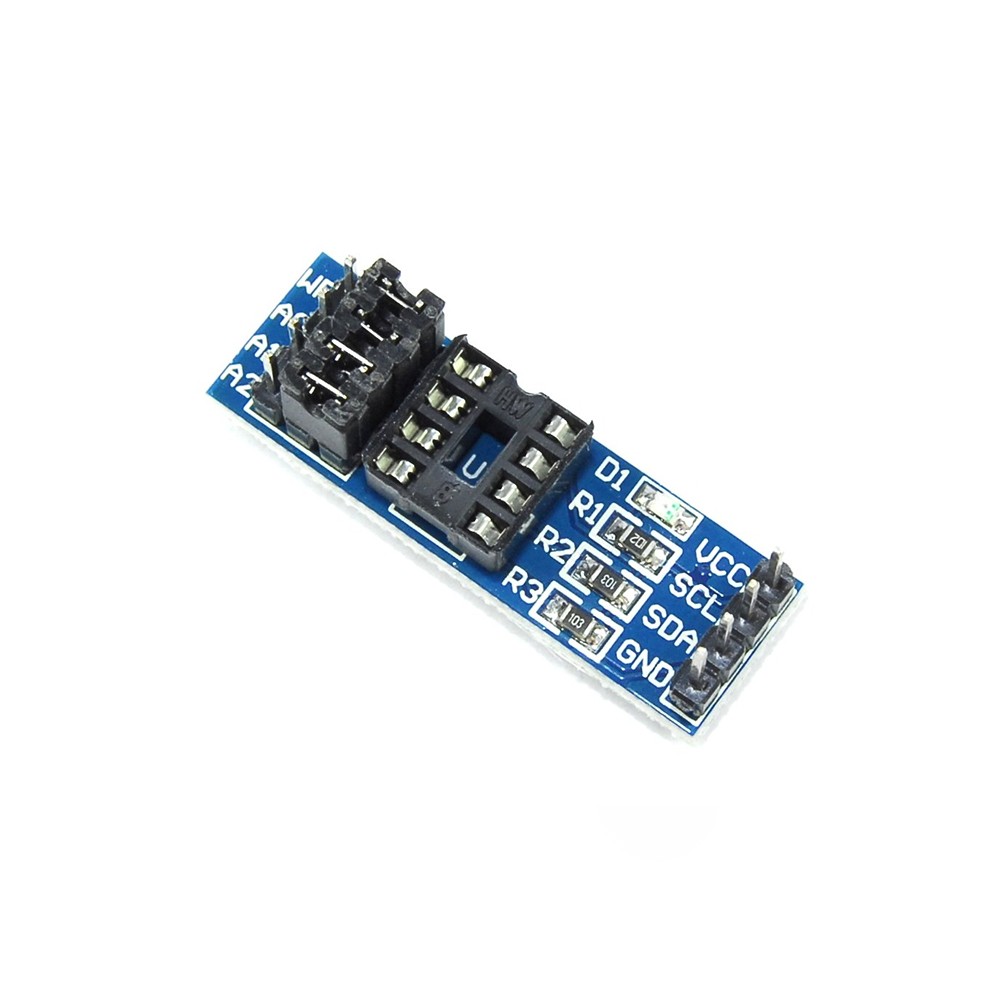

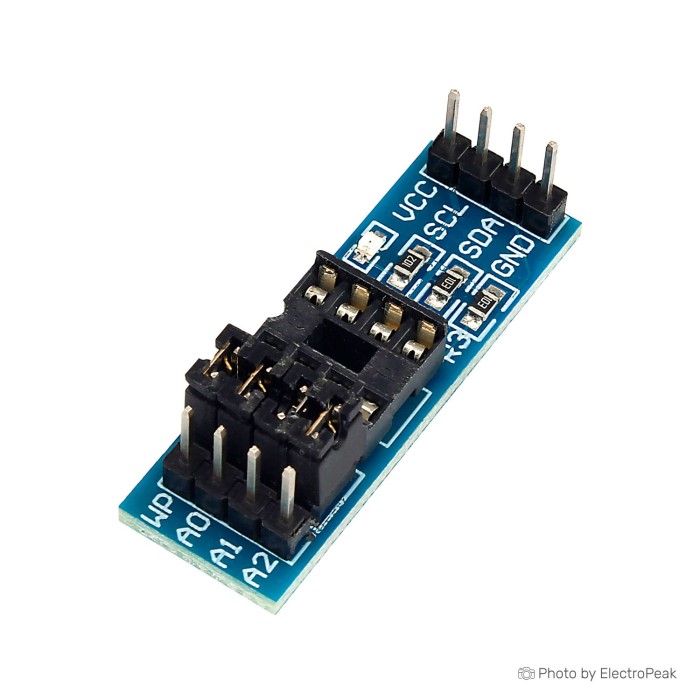

AT24CXX EEPROM Memory Module - I2C Interface is a breakout board for adding an EEPROM chipset to a project. It uses a common I2C interface for communication and supports device addressing through A jumpers. The memory chipset is organized into 8192 words of 8 bits. The I2C address range is 0x50 - 0x57. The module includes pin labels for VCC, SCL, SDA, and GND, along with WP and A0 - 2 jumper functions.
Features of AT24CXX EEPROM Memory Module - I2C Interface
- I2C communication interface
- 8192 words of 8-bit memory organization
- Adjustable device address
- Write protect jumper
- 2-pin communication interface
Specifications of AT24CXX EEPROM Memory Module - I2C Interface
- VCC: 2.7 - 5.5V
- SCL: Serial clock
- SDA: Serial data
- GND: 0V
- WP: Write protect
- A0 - 2: Device address
- I2C address range: 0x50 - 0x57
- Memory organization: 8192 words of 8 bits
How to Use AT24CXX EEPROM Memory Module - I2C Interface
- Connect VCC, GND, SCL, and SDA to your system.
- Set the device address with the A0 - 2 jumpers.
- Use the WP jumper when write protection is required.
More Info
- Breakout board format
- EEPROM chipset addition for projects
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.7 - 5.5 V |
| Operating Current (mA) | Max 2 mA in active mode |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 36x12 mm |
| Mounting Type | Pin Header |
| Function | Data Storage |
| Output Type | I2C |
| Chipset | AT24CXX |
