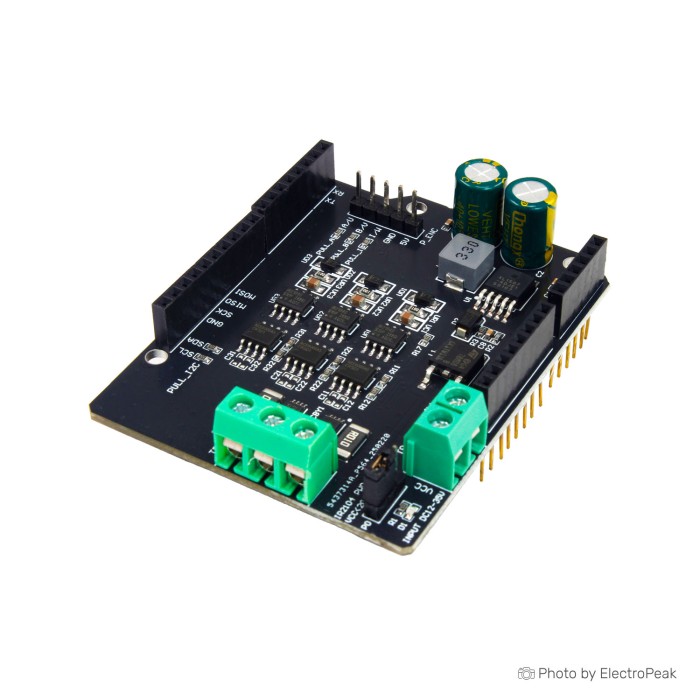

The Arduino FOC Brushless Motor Driver Board is designed for field-oriented control (FOC) applications, providing smooth and efficient motor control. It supports brushless DC motors and is compatible with the SimpleFOC Shield V2.0.4. The board integrates dual INA240 high-precision current sensors for accurate feedback and control. It is compatible with popular development boards like Arduino UNO, Arduino MEGA, and STM32 Nucleo. The IR2104 power supply jumper allows flexible voltage settings based on input power.
Specifications of Arduino FOC Brushless Motor Driver Board
-
Motor Type: DC Motor
-
Compatibility: Supports SimpleFOC Shield V2.0.4
-
Power Supply: DC 12-35V
-
Current Sensing: Dual INA240 high-precision current sensors
-
Interface: A, B, C brushless motor interface
-
Microcontroller Compatibility: Arduino UNO, Arduino MEGA, STM32 Nucleo
-
IR2104 Power Supply Jumper:
-
When VCC ≤ 20V, jumper at the left end (IR2104 voltage = VCC)
-
When VCC > 20V, jumper at the right end (IR2104 voltage = 16V)
-
-
Dimensions: ---
