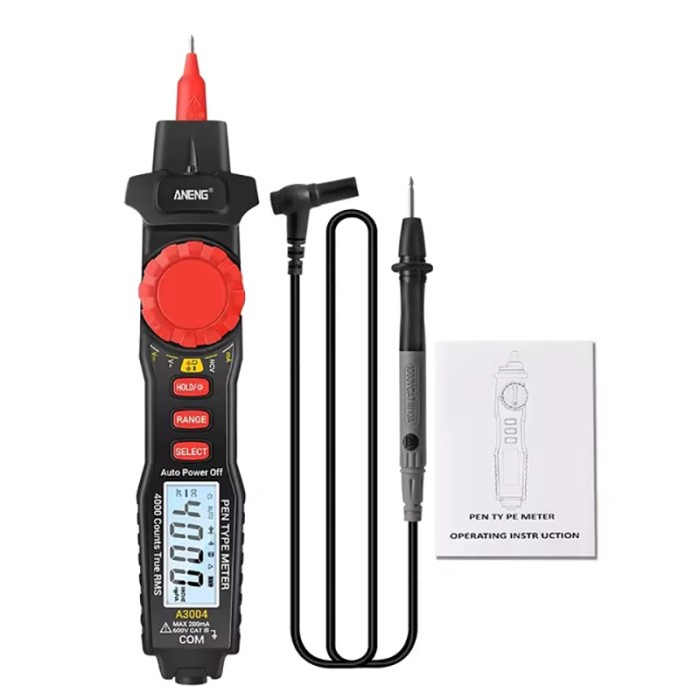

The ANENG A3004 Digital Pen Multimeter is a compact, pen-style multimeter designed for accurate measurements in various electronic and electrical applications. Its slim design makes it easy to carry and handle in tight spaces, while the display allows quick readings of AC/DC current, voltage, resistance, and other parameters. This multimeter offers a range of measurement modes, including diode testing, capacitance, temperature, and frequency, making it ideal for technicians and DIY enthusiasts.
Specifications of ANENG A3004 Digital Pen Multimeter
-
AC Current Range: 999.9mA / 10A (Min 20mA, Max 10A)
-
Accuracy: ±(1.0% reading + 8 digits)
-
-
DC Current Range: 999.9mA / 10A (Min 20mA, Max 10A)
-
Accuracy: ±(1.0% reading + 5 digits)
-
-
DC Voltage Range: 999.9mV / 9.999V / 99.99V / 999.9V
-
Accuracy: ±(0.5% reading + 3 digits)
-
-
AC Voltage Range: 999.9mV / 9.999V / 99.99V / 999.9V
-
Accuracy: ±(0.8% reading + 5 digits)
-
-
Resistance Range: 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ
-
Accuracy: ±(0.8% reading + 3 digits)
-
-
Capacitance Range: 9.999nF to 99.99mF
-
Accuracy: 9.999nF: ±(10% reading + 40 digits); 999.9nF to 99.99mF: ±(2.5% reading + 20 digits)
-
-
Temperature Range: -40 to 1000°C / -40 to 1832°F
-
Accuracy: ±(1% reading + 3°C) / ±(1% reading + 3°F)
-
-
Frequency Range: 100Hz / 1000Hz
-
Accuracy: ±(1.0% reading + 5 digits)
-
-
Diode Test Voltage: 1V
-
Line Continuity Test Resolution: 0.1Ω
-
Dimensions: ---
Datasheet of ANENG A3004 Digital Pen Multimeter
Datasheet: Not available
