GUVA-S12SD UV Analog Sensor Module
$1.0600
In stock
SKU
SEN-11-045
Volume discounts:
- +50 2 % $1.0400
- +100 3 % $1.0300
- +300 4 % $1.0200
- +500 6 % $1.0000
- +1000 7 % $0.9900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PR5528 Photocell Previous

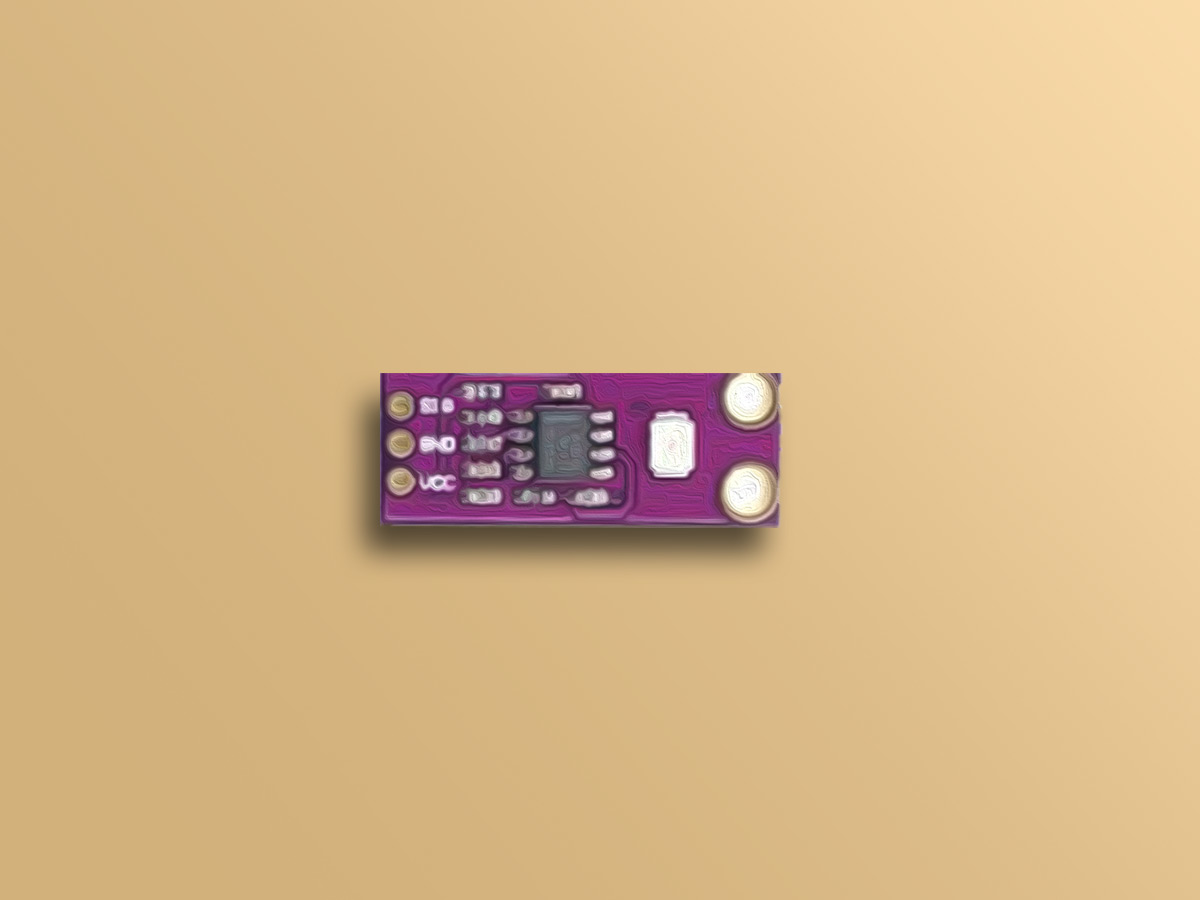

The GUVA-S12SD UV Analog Sensor Module is a UV photodiode sensor module for measuring ultraviolet light intensity through an analog output. It detects light in the 240nm to 370nm range, covering UVB and UVA. The module uses an op amp to amplify the very small photodiode signal into a usable analog voltage. It provides a calibrated analog voltage that varies with UV light intensity. This makes the GUVA-S12SD UV Analog Sensor Module suitable for UV monitoring and ADC-based measurement.
Features of GUVA-S12SD UV Analog Sensor Module
- Analog output
- UV photodiode sensing
- 240nm to 370nm detection range
- 130° detection angle
- Op amp signal amplification
- Good linearity
- Stable performance
Specifications of GUVA-S12SD UV Analog Sensor Module
- Supply voltage: 2.5V ~ 5V
- Dimensions: 11×27 mm
- Detection range: 240nm-370nm
- Detection angle: 130°
- Photodiode type: Schottky photodiode
- Chip: UVA-S12SD
- Output type: Analog
- Input voltage: 3.3V ~ 5.5V
- Measuring range: 0 ~ 10 UVI
- Wavelength: 240nm ~ 370nm
- Pin number: 3 Pins
- Operating temperature: -30°C ~ +85°C
- Storage temperature: -40°C ~ +90°C
- Size: 11mm x 27mm
- GND: 0V (Ground)
- VCC: 3.3V ~ 5.5V
- OUT: 0V ~ 1V (0 to 10 UV Index)
How to Use GUVA-S12SD UV Analog Sensor Module
- Connect GND to 0V.
- Connect VCC to 3.3V ~ 5.5V.
- Connect OUT to an ADC input and read the analog voltage.
More Info
- 3-pin module
- Calibrated analog voltage output
- UV tester applications
- UV watches applications
- Outdoor sports equipment applications
- Mobile phone applications
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 2.5V ~ 5V |
| Operating Temp (°C) | -30 to 85 |
| Dimensions (mm) | 11 x 27 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Wavelength Range | 240nm-370nm |
| Field of view angle (degrees) | 130° |
| Chipset | GUVA-S12SD |
| Sensor Type | Photodiode |
