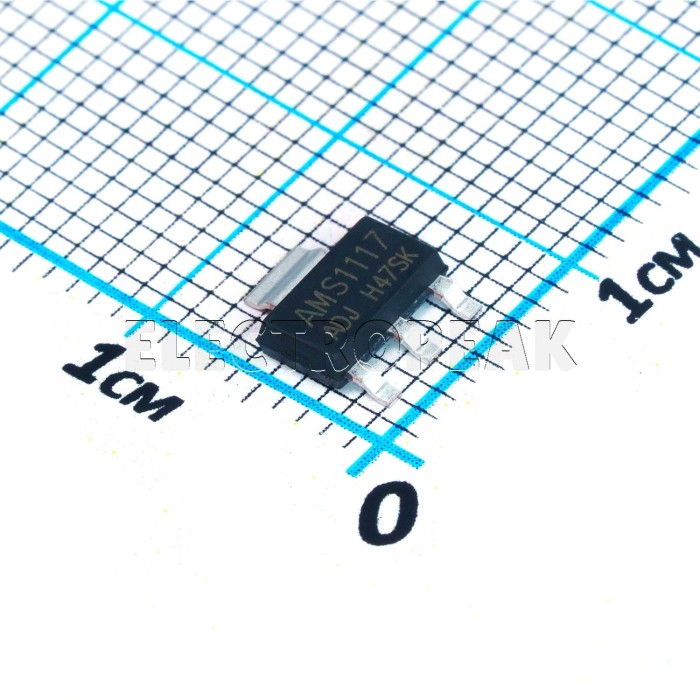

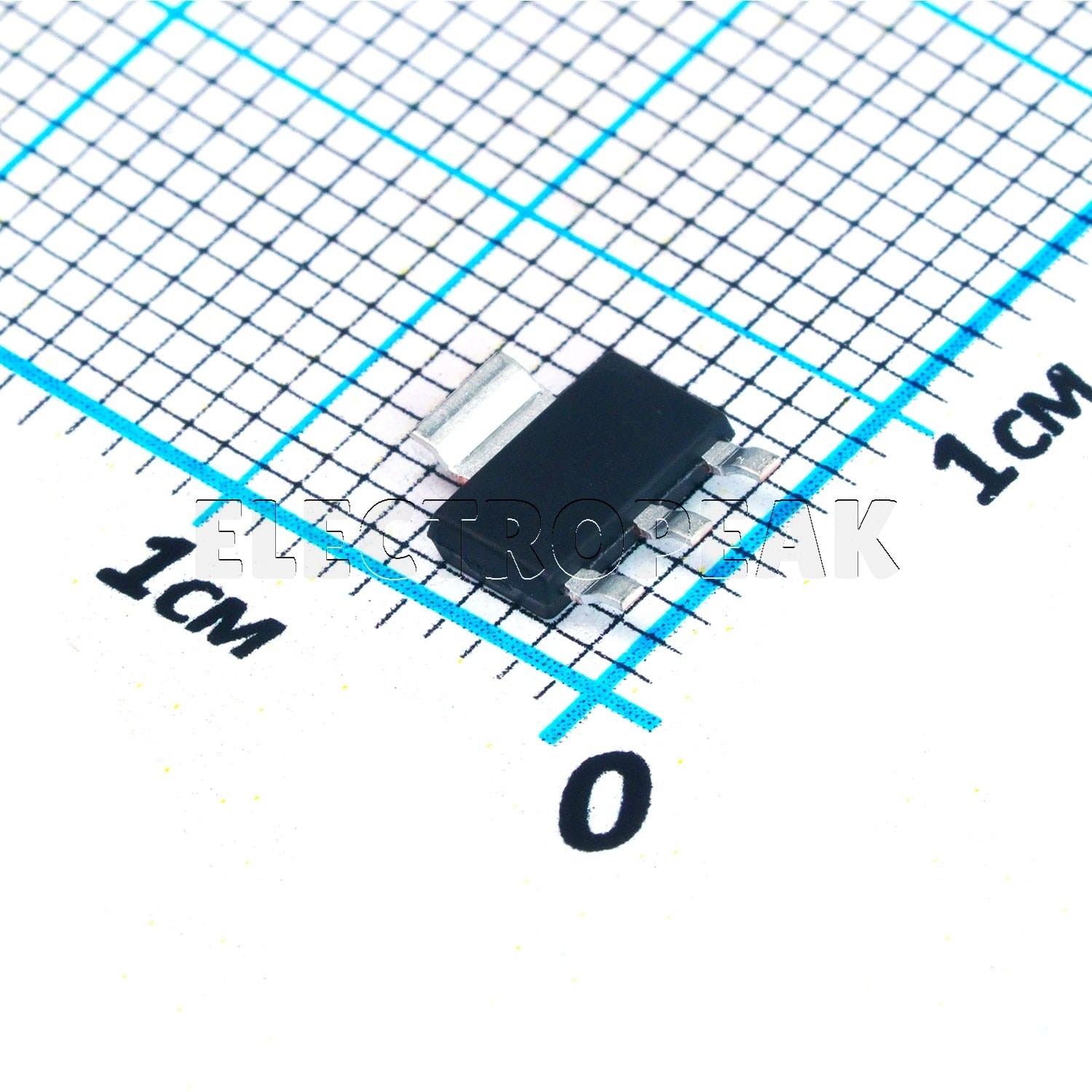

AMS1117-ADJ, LDO Voltage Regulator, SOT-223
$0.0250
In stock
SKU
S1-0061
Volume discounts:
- +500 4 % $0.0240
- +1000 8 % $0.0230
- +10000 12 % $0.0220
AMS1117-ADJ, LDO Voltage Regulator, SOT-223 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AMS1117-5.0, LDO Voltage Regulator, SOT-223 Previous
AMS1117-ADJ LDO Voltage Regulator is an adjustable linear voltage regulator IC in an SOT-223 package. It provides a low dropout solution for regulated power designs and supports adjustable output voltage. This regulator can supply up to 0.8A of output current. It is suitable for high-efficiency linear regulators, battery chargers, and post regulators for switching supplies.
Features of AMS1117-ADJ LDO Voltage Regulator - SOT-223
- Adjustable output voltage
- Low dropout operation
- Up to 0.8A output current
- SOT-223 package
Specifications of AMS1117-ADJ LDO Voltage Regulator - SOT-223
- Input Voltage: Up to 15V
- Output Voltage: Adjustable from 1.25V to 13.8V
- Output Current: Up to 0.8A
- Dropout Voltage: Maximum 1.3V at 0.8A
- Quiescent Current: 5 mA
- Package: SOT-223
How to Use AMS1117-ADJ LDO Voltage Regulator - SOT-223
- Connect the input supply within the rated input voltage.
- Set the output voltage to the required adjustable level.
- Use the regulator in the target power circuit.
More Info
- Adjustable linear voltage regulator IC
- Low dropout (LDO) regulator
| Package | SOT-223 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Max | 150 C° |
| Polarity | Positive Type |
| Mounting Type | SMD/SMT |
| Components - Type | LDO Voltage Regulators |
