XH-M190 TPA3116 Stereo Audio Amplifier Board - 2x100W
$4.8000
In stock
SKU
SEN-17-034
Volume discounts:
- +25 4 % $4.6200
- +100 6 % $4.5300
- +300 7 % $4.4400
- +500 9 % $4.3500
- +1000 11 % $4.2600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Active Buzzer Alarm Sound Module Previous

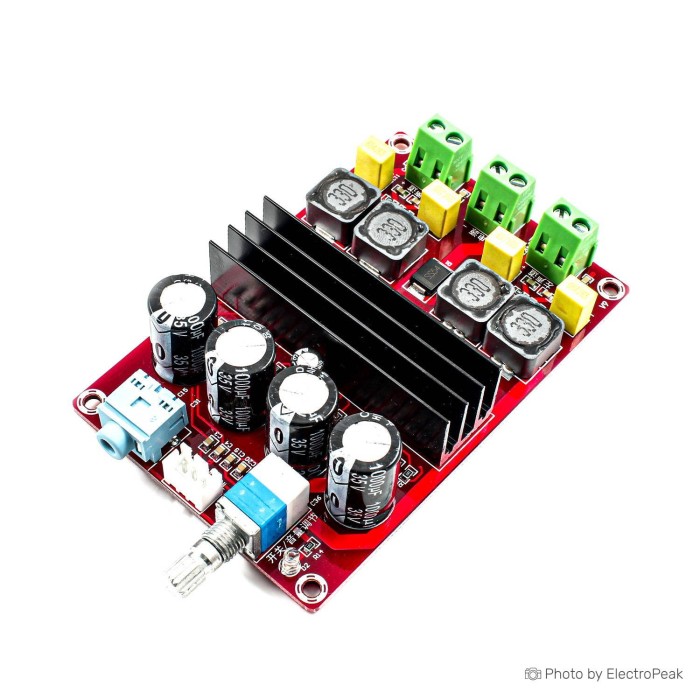

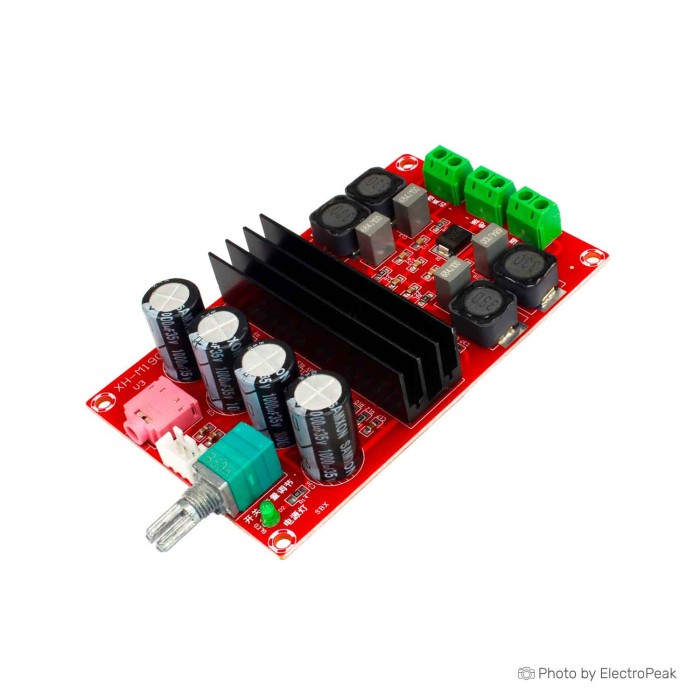

XH-M190 TPA3116 Stereo Audio Amplifier Board is a dual-channel audio amplifier board for stereo sound projects. It provides 2x100W output power and uses a TDA3116 chip. The board operates with a 12 to 24V DC supply and supports 4 to 8 ohm output impedance. It includes a volume adjustment control and input options for audio use. This amplifier board is suitable for home audio systems, studios, Hi-Fi setups, and other audio projects.
Features of XH-M190 TPA3116 Stereo Audio Amplifier Board
- 2x100W output power
- Dual-channel stereo design
- 12 to 24V DC operation
- Volume adjustment control
- Audio input support
Specifications of XH-M190 TPA3116 Stereo Audio Amplifier Board
- Chip: TDA3116
- Output power: 2x100W
- Operating voltage range: 12 to 24V DC
- Working current: minimum 3A
- Output impedance: 4 to 8 ohm
- Frequency range: 14 to 100kHz
- SNR: 100dB
- Input resistance: 51K ohm per channel
- Number of channels: 2 (left/right)
- Dimensions: 105*65*23 mm
- Weight: 160 g
- Color: Red
How to Use XH-M190 TPA3116 Stereo Audio Amplifier Board
- Connect the board to a 12 to 24V DC power supply.
- Connect the audio input and speaker output lines.
- Adjust the volume control as needed.
More Info
- Dual-channel audio amplifier board
- Designed for stereo audio applications
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 12-24V DC |
| Operating Current (mA) | Minimum 3000 mA |
| Dimensions (mm) | 105 x 65 x 23 |
| Mounting Type | Screw holes |
| Audio Function | Amplifier |
| Output Power | 2 x 100W |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Sampling Rate (Hz) | 14-100 kHz |
| Weight (g) | 160 |
| Input Types | Analog |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | TDA3116 |
| Signal-to-Noise Ratio (SNR) | 100 dB |
