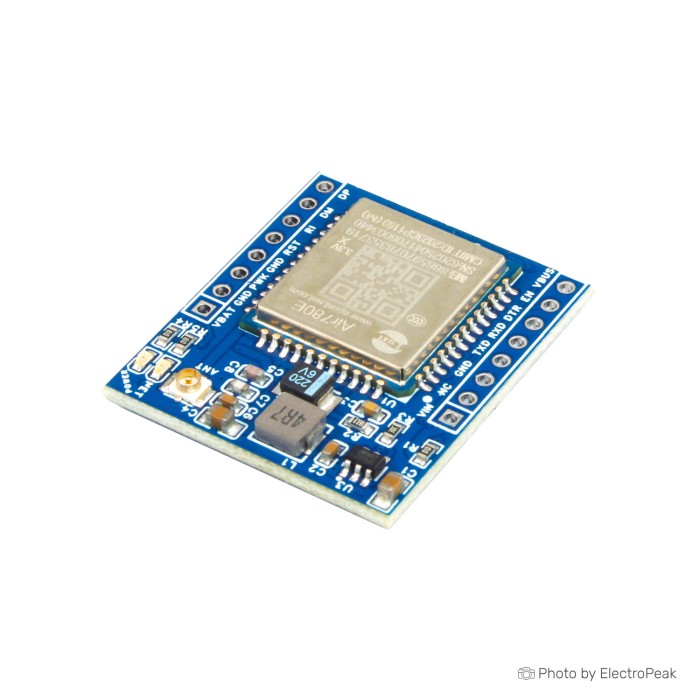

Air780E Development Board mini 4G Cat.1
$8.9500
In stock
SKU
COM-08-028
Volume discounts:
- +25 4 % $8.5800
- +50 6 % $8.3900
- +100 8 % $8.2000
- +300 10 % $8.0200
- +500 13 % $7.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The Air780E Development Board mini 4G Cat.1 is a compact and versatile board designed for 4G LTE communication, making it ideal for data reporting and remote control applications. It supports various frequency bands for reliable connections and offers multiple interfaces like UART and USB 2.0 for easy integration with different systems. With a flexible power input range and a compact design, this board is perfect for low-power components in IoT projects.
Specifications of Air780E Development Board mini 4G Cat.1
-
Communication mode: 4G LTE Cat.1
-
Supported frequency bands: FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41
-
Development method: AT command
-
Interfaces: UART / USB 2.0
-
Power supply: Vin: 4.7-12V / Vbat: 3.3-4.3V / Vbus: 5V (USB input)
-
Operation voltage: V-MCU 3.3V
-
Dimensions: 31x27mm
Datasheet of Air780E Development Board mini 4G Cat.1
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 31x27mm |
| Connector | IPEX |
| Wireless Protocol | GSM/GPRS/4G |
| Frequency Band | FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41 |
| Data transmission rate | 10 Mbps DL / 5 Mbps UL |
| SIM Slots | 1 |
| Chipset | Air780E |
| Input Voltage (V) | Vin: 4.7-12V / Vbat: 3.3-4.3V / Vbus: 5V |
| Antenna Type | External IPEX/IPX |
