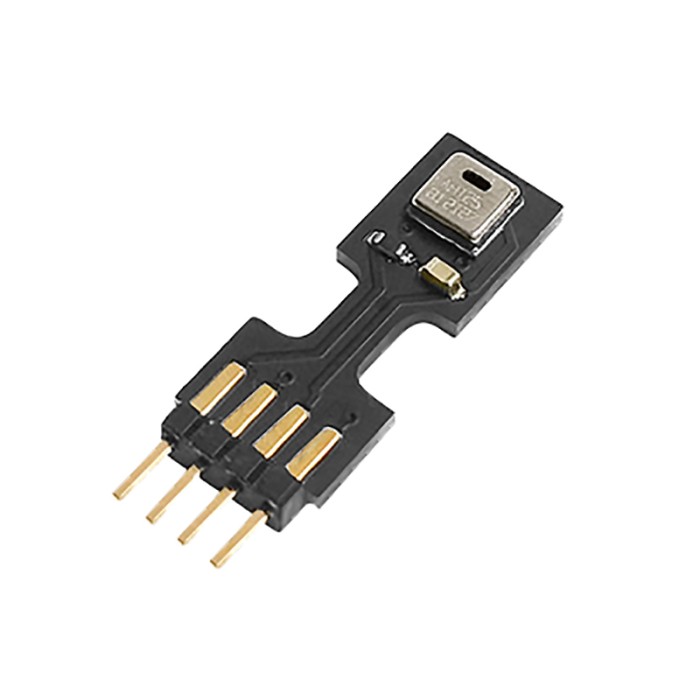

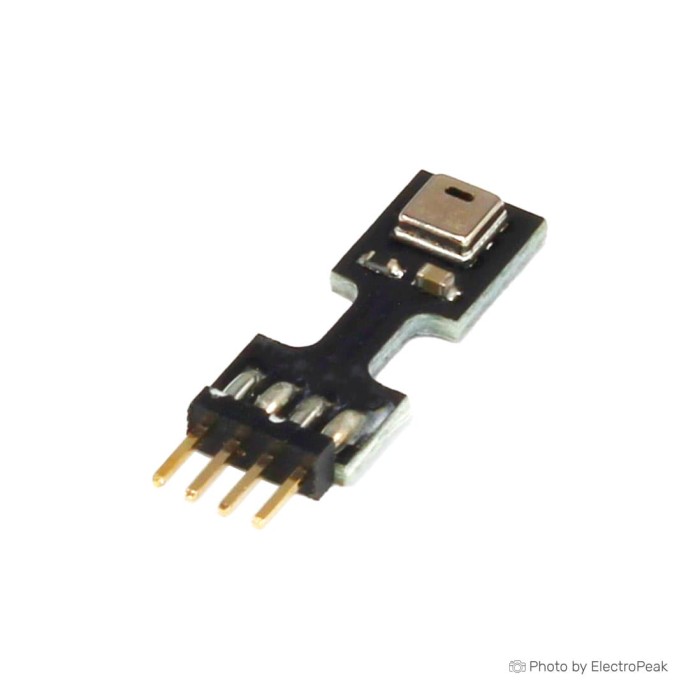

AHT25 Temperature and Humidity Sensor Module
$1.2500
In stock
SKU
SEN-10-120
Volume discounts:
- +50 5 % $1.1900
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 11 % $1.1100
- +1000 14 % $1.0800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AM2305B Temperature and Humidity Module Previous
The AHT25 Temperature and Humidity Sensor Module is an advanced sensor developed by Aosong for high-precision environmental monitoring. With a compact design and low power consumption, it is perfect for a wide range of applications including industrial automation, HVAC, IoT devices, and more. It provides accurate measurements of both temperature and humidity and is equipped with an I²C interface for easy integration. The AHT25 offers excellent accuracy, fast response times, and long-term stability, making it ideal for demanding environments. The module operates over a wide range of temperatures and humidity levels, ensuring versatile usage.
Specifications of AHT25 Temperature and Humidity Sensor Module
-
Supply Voltage: 2.2V - 5.5V DC
-
Operating Temperature Range: -40°C to +80°C
-
Operating Humidity Range: 0% to 100% RH
-
Temperature Accuracy: ±0.3°C
-
Humidity Accuracy: ±2% RH at 25°C
-
Temperature Resolution: 0.01°C
-
Humidity Resolution: 0.024% RH
-
Output Signal: I²C
Datasheet of AHT25 Temperature and Humidity Sensor Module
Manufacturer of AHT25 Temperature and Humidity Sensor Module
Datasheet of AHT25 Temperature and Humidity Sensor Module
Development Resources of AHT25 Temperature and Humidity Sensor Module
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.2V - 5.5V DC |
| Operating Current (mA) | 0.023 mA |
| Operating Temp (°C) | -40°C to +80°C |
| Dimensions (mm) | 17.7 x 12.0 x 6.0 mm |
| Mounting Type | THT |
| Output Type | I2C |
| Accuracy | ±0.3°C, ±2% RH |
| Resolution | 0.01°C, 0.024% RH |
| Response Time | 8s |
| Measurement Range | -40 to +80°C, 0% to 100% RH |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Temperature and humidity sensor |
| Chipset | AHT25 |
| Humidity Range | 0% to 100% RH |
| Relay Output | No |
| Humidity Accuracy | ±2% RH at 25°C |
| Protocols | I2C |
| Temp Accuracy | ±0.3°C |
