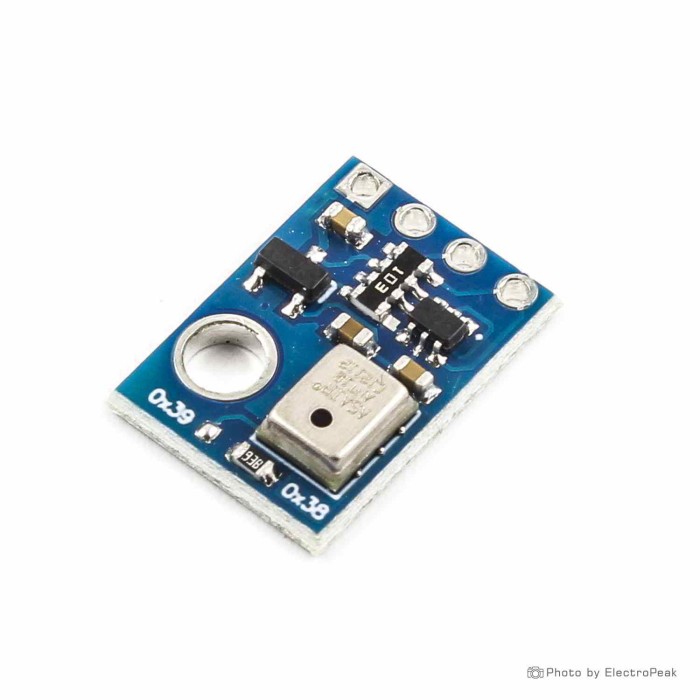

AHT10 Digital Temperature and Humidity Sensor Module
$0.8000
In stock
SKU
SEN-10-070
Volume discounts:
- +50 4 % $0.7700
- +100 6 % $0.7500
- +300 8 % $0.7400
- +500 10 % $0.7200
- +1000 11 % $0.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HTU31D Temperature and Humidity Sensor Module Previous
The AHT10 Digital Temperature and Humidity Sensor Module is a compact digital sensor module for temperature and humidity measurement. It provides a calibrated digital output in standard I2C format. The module uses an ASIC chip and an improved MEMS semiconductor capacitive humidity sensing element. It is designed for stable performance in harsh environments and supports a wide operating voltage range.
Features of AHT10 Digital Temperature and Humidity Sensor Module
- Digital temperature and humidity measurement
- Standard I2C output
- ASIC-based sensor design
- Improved MEMS humidity sensing element
- Stable performance in harsh environments
Specifications of AHT10 Digital Temperature and Humidity Sensor Module
- Module size: 16*11 mm
- Interface type: I2C
- Operating voltage: 1.8 - 6.0 V
- Interface size: 4*2.54mm pitch
- Humidity Accuracy: Typical ±2%
- Humidity resolution: 0.024%
- Temperature accuracy: typical ±0.3℃
- Temperature resolution: typical 0.01℃
- Working temperature: -40℃--85℃
How to Use AHT10 Digital Temperature and Humidity Sensor Module
- Connect the SDA and SCL pins to an I2C controller.
- Supply power within the operating voltage range.
- Read temperature and humidity data through I2C.
More Info
- Compact 16*11 mm module format
- Suitable for standard I2C-based electronics projects
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 1.8 - 6.0 V |
| Operating Current (mA) | 0.25 mA |
| Operating Temp (°C) | -40 to 85 °C |
| Dimensions (mm) | 16 x 11 mm |
| Mounting Type | THT |
| IP Rating | None |
| Output Type | I2C |
| Accuracy | Humidity: ±2%, Temperature: ±0.3 °C |
| Resolution | Humidity: 0.024% RH, Temperature: 0.01 °C |
| Measurement Range | Temperature: -40 to +85 °C, Humidity: 0 to 100% RH |
| Environmental Parameter | Temperature And Humidity |
| Chipset | AHT10 |
| Humidity Range | 0 - 100% RH |
| Relay Output | No |
| Humidity Accuracy | ±2% |
| Protocols | I2C |
| Temp Accuracy | ±0.3 °C |
