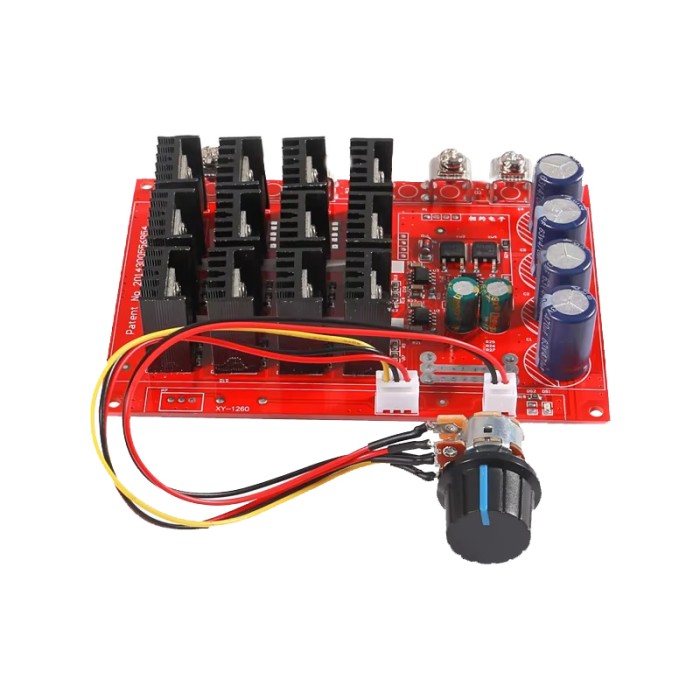

9-50V 60A PWM DC Motor Speed Controller
The 9-50V 60A PWM DC Motor Speed Controller is a robust and versatile device designed to precisely control the speed of DC motors up to 3000W. Compatible with a wide voltage range of 10V to 50V DC, it supports multiple power levels including 12V, 24V, 36V, and 50V. Utilizing a high-frequency PWM signal at 15,000Hz, this controller ensures smooth and adjustable speed regulation from 5% to 100%. Available with or without a protective case, it is ideal for industrial machinery, electric vehicles, and DIY projects, offering reliable performance and efficient motor control.
Specifications of 9-50V 60A PWM DC Motor Speed Controller
-
Power Requirement: 10V - 50V DC
-
Rated Current: 60A Maximum Output Current
-
Frequency: 15,000 Hz
-
Control Motor Power:
-
12V: 720W (max)
-
24V: 1440W (max)
-
36V: 2160W (max)
-
50V: 3000W (max)
-
-
Standby Current: 0.04A
-
Regulation Range: 5% - 100%
-
PCB Size: 122mm x 87mm x 32mm
-
Dimensions: 122x87x32mm
-
Options: Available with or without case
Datasheet of 9-50V 60A PWM DC Motor Speed Controller
Datasheet: Not available
