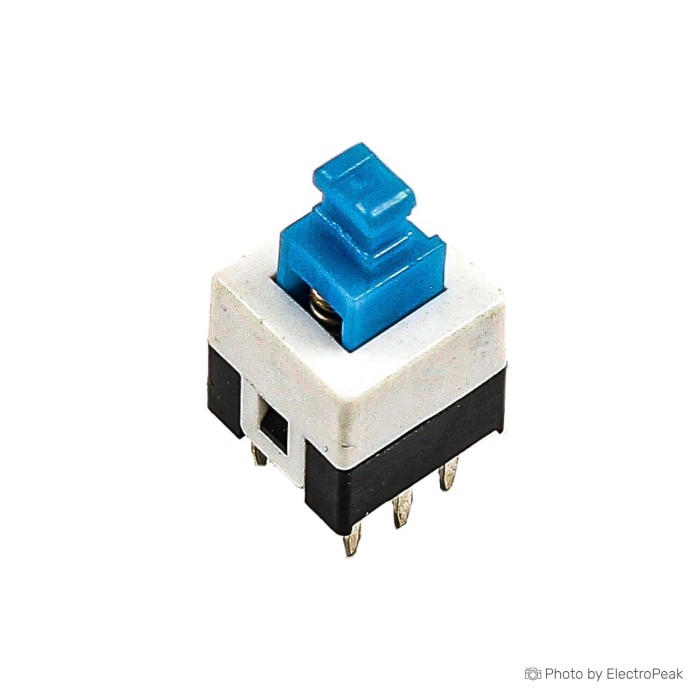

Tactile Push Button Switch - 8x8mm, 6 Pins

The Tactile Push Button Switch is a compact 6-pin switch for manual circuit control. It is designed as an on/off switch for electronic applications that require user interaction. With an 8x8mm body size, it fits compact builds and panel layouts. The switch combines plastic and metal construction for a practical component format. It is rated for up to 30V DC and up to 0.5A. The operating temperature range is -25 to 85°C, and the electrical life is more than 10000 cycles.

Features of 6-Pin Tactile Push Button Switch - 8x8mm, 30V DC, 0.5A

• 6-pin switch design
• 8x8mm compact size
• Up to 30V DC rating
• Up to 0.5A current rating
• Plastic and metal construction
• More than 10000 electrical cycles

Specifications of 6-Pin Tactile Push Button Switch - 8x8mm, 30V DC, 0.5A

• Maximum voltage: up to 30V DC
• Maximum current: up to 0.5A
• Size: 8x8mm
• Pin row spacing: 5mm
• Number of pins: 6
• Weight: 8g
• Material: Plastic and metal
• Operating temperature: -25 to 85°C
• Electrical life: more than 10000 cycles

How to Use 6-Pin Tactile Push Button Switch - 8x8mm, 30V DC, 0.5A

1. Place the switch in the intended circuit position.
2. Connect the 6 pins according to the circuit layout.
3. Verify the voltage and current stay within the rated limits.
4. Test the switch action before final installation.

More Info

• Suitable for compact electronic control designs.
• Includes a 5mm pin row spacing.
