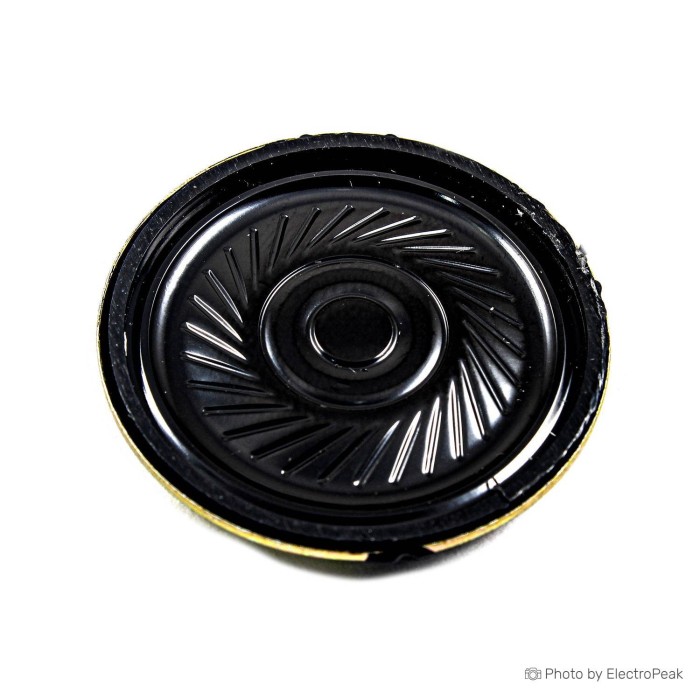

Ultra-thin Small Speaker - 8 ohm, 0.5W - 36mm Diameter
$0.2300
In stock
SKU
SEN-17-012
Volume discounts:
- +100 4 % $0.2200
- +500 9 % $0.2100
- +1000 13 % $0.2000
- +10000 17 % $0.1900
Ultra-thin Small Speaker - 8 ohm, 0.5W - 36mm Diameter is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The Ultra-Thin Small Speaker is a compact audio component for signal output in space-limited equipment. It features an 8-ohm impedance and 0.5-watt power output. The speaker has a 36 mm diameter and a 5 mm depth. It uses a ferrite magnet and solder pads for connection. This speaker is suitable for electronic projects, toys, alarm systems, and portable devices.
Features of Ultra-Thin Small Speaker - 8 Ohm, 0.5W, 36mm
- Compact 36 mm design
- 8-ohm impedance
- 0.5-watt power output
- Ferrite magnet
- Solder pad connection
Specifications of Ultra-Thin Small Speaker - 8 Ohm, 0.5W, 36mm
- Impedance: 8 Ohms
- Power Output: 0.5 Watts
- Diameter: 36 mm
- Frequency Response: 80 Hz – 12 kHz
- Sensitivity: 92 dB ±3 dB
- Magnet Type: Ferrite
- Depth: 5 mm
- Connection Type: Solder Pads
- Cone Material: Plastic
- Applications: Toys, alarm systems, DIY projects
How to Use Ultra-Thin Small Speaker - 8 Ohm, 0.5W, 36mm
- Connect the speaker through the solder pads.
- Install it in the target audio or signal-output device.
More Info
- Suitable for compact electronic assemblies.
- Designed for signal output in limited-space equipment.
| Speaker Impedance (Ω) | 8Ω |
|---|---|
| Power Rating (W) | 0.5W |
| Sound Level | 92 dB ±3 dB |
| Frequency Response | 80 Hz – 12 kHz |
| Speaker Type | Speaker |
| Diameter (mm) | 36 |
| Connector | Soldering |
| Dimensions (mm) | 36 x 5 |
| Application | Toys, alarm systems, DIY projects |
