18650 Battery Charge Shield Expansion Board - 5V 2A Output
$1.7500
In stock
SKU
misc-04-032
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5500
- +1000 14 % $1.5100
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CR1220 Round Button Coin Battery Holder Previous

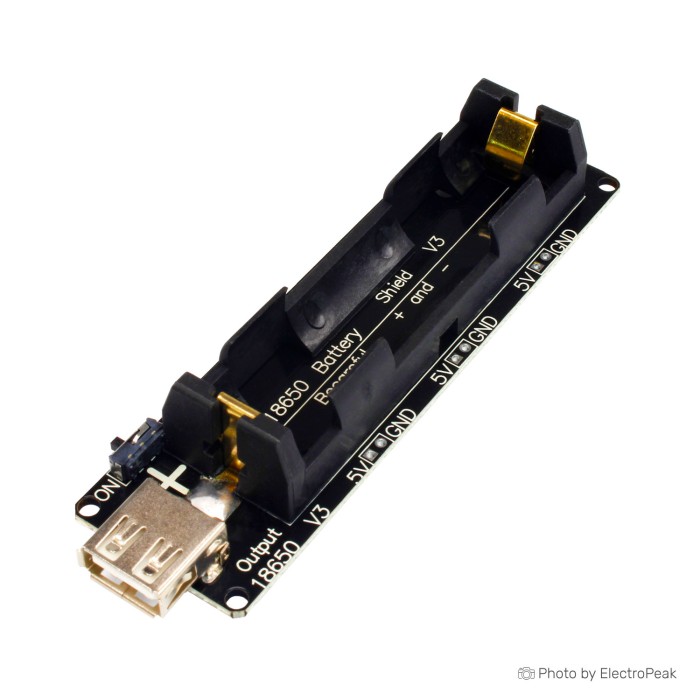

The 18650 Battery Charge Shield Expansion Board - 5V 2A Output is designed for 18650 battery use and provides charging and output functions on a single board. It can be powered or used for Raspberry Pi and sensor applications at the same time. The module supports output current up to 2A and includes a Micro USB charging interface. It also features over-charging protection and over-discharge protection. The board includes LED status indication for charging and full charge conditions.
Features of 18650 Battery Charge Shield Expansion Board - 5V 2A Output
- Suitable for 18650 battery only
- Micro USB charging interface
- Over-charging protection
- Over-discharge protection
- 1 switch for USB output control
- LED charging indicators
Specifications of 18650 Battery Charge Shield Expansion Board - 5V 2A Output
- Input voltage: 5 ~ 8V
- Charge current: 0.5A
- Output current: up to 2A
- Three 3V 1A output interface
- Three 5V 2A output interface
- Green LED: full of charge
- Red LED: under charging
How to Use 18650 Battery Charge Shield Expansion Board - 5V 2A Output
- Install the 18650 battery with correct + and - direction on the PCB.
- Connect power through the Micro USB charging interface.
- Use the switch to control the USB output.
More Info
- Battery is not included.
- Do not reverse the battery polarity during installation.
| Compatible With | 18650 Lithium Battery |
|---|---|
| Function | Power Bank |
| Charging Voltage (Pack) | 5V |
| Supported Battery Type | Li-ion |
| Overcharge Detection Voltage (per Cell) | 4.2V |
| Over-discharge Detection Voltage (per Cell) | 3.2V |
| Cell Count | 1 |
| Input Voltage (V) | 5 ~ 8V |
| Output Voltage (V) | 5V |
| Output Current (A) | 2A |
| Connector | USB, Micro USB |
| Max Charging Current | 0.5A |
| USB Connector | Micro USB |
| Port Configuration | USB |
| Protection | Over-charging protection,Over-discharge protection,Over-current protection,Over-voltage protection,Under-voltage protection |
| Display Type | LED |
| Indicator LEDs | Green LED (Full of charge),Red LED (Under charging) |
| Dimensions (mm) | 30x105 mm |
| Mounting Type | Screw holes |
