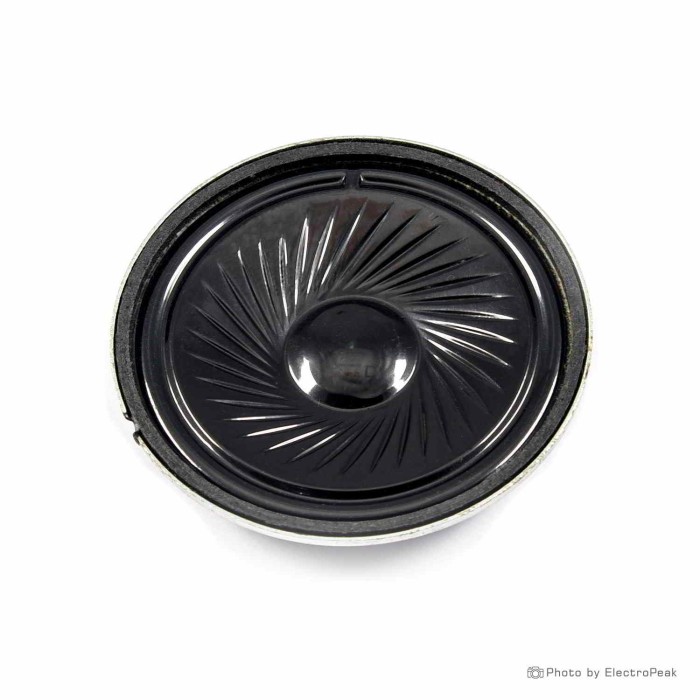

Speaker - 8 Ohm, 2W, 50mm Diameter

The Speaker - 8 Ohm, 2W, 50mm Diameter is a compact speaker for electronics applications. It includes the key electrical and physical specifications needed for product selection. The speaker is defined by an 8 Ohm impedance and 2 W rated power. It also lists a maximum output power of 3 W and a sound pressure level of 84 dB. Frequency response, resonance data, coil size, dimensions, and weight are included below.

Features of Speaker - 8 Ohm, 2W, 50mm Diameter

• 8 Ohm impedance
• 2 W rated power
• 3 W maximum output power
• 84 dB sound pressure level
• 50mm diameter

Specifications of Speaker - 8 Ohm, 2W, 50mm Diameter

• Rated power: 2 W
• Output power max.: 3 W
• Impedance: 8 Ohm
• Sound pressure level: 84 dB
• Diameter: 50mm
• Section size (diameter): 46 mm
• Frequency response min.: 180 Hz
• Frequency response max.: 17 kHz
• Lowest resonance frequency: 300 Hz
• Speech coil diameter: 10 mm
• Height: 18 mm
• Weight: 48 g

How to Use Speaker - 8 Ohm, 2W, 50mm Diameter

1. Verify the impedance and power ratings before installation.
2. Connect the speaker according to your audio circuit requirements.
3. Check the physical dimensions for fitment in the enclosure.

More Info

• Suitable for electronics and robotics projects.
• Use the listed specifications for selection and integration.
