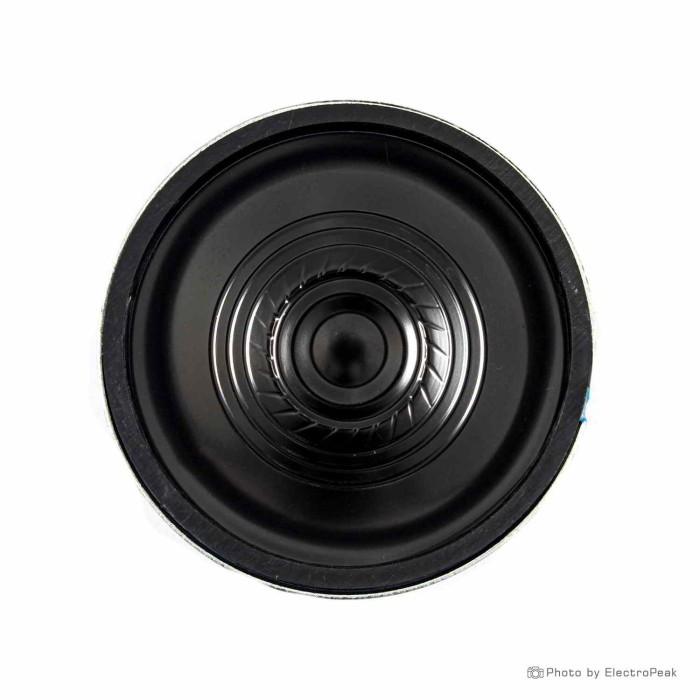

Speaker - 8 Ohm, 1W, 45mm Diameter
$0.3400
In stock
SKU
SEN-17-108
Volume discounts:
- +100 3 % $0.3300
- +5000 6 % $0.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Speaker - 8 Ohm, 1W, 40mm Diameter Previous
The Speaker - 8 Ohm, 1W, 45mm Diameter is a compact speaker unit with standard 8 ohm impedance and a 45 mm diameter. It is rated for 1 W output and has a maximum output power of 2 W. The speaker provides a sound pressure level of 83 dB. Its frequency response ranges from 300 Hz to 14 kHz. The lowest resonant frequency is 520 Hz. The voice coil diameter is 14 mm.
Features of Speaker - 8 Ohm, 1W, 45mm Diameter
- 8 ohm impedance
- 1 W rated power
- 2 W maximum output power
- 83 dB sound pressure level
- 45 mm diameter
- 300 Hz to 14 kHz frequency response
- 520 Hz lowest resonant frequency
- 14 mm voice coil diameter
Specifications of Speaker - 8 Ohm, 1W, 45mm Diameter
- Rated Power: 1 W
- Output Power Max.: 2 W
- Impedance: 8 Ohm
- Sound Pressure Level: 83 dB
- Diameter: 45 mm
- Cut Out Size (Diameter): 41.5 mm
- Frequency Response Min.: 300 Hz
- Frequency Response Max.: 14 kHz
- Lowest Resonant Frequency: 520 Hz
- Voice Coil Diameter: 14 mm
- Height: 18 mm
- Weight: 46 g
How to Use Speaker - 8 Ohm, 1W, 45mm Diameter
- Connect the speaker to an appropriate audio output circuit.
- Install the speaker using the 41.5 mm cut out size and 45 mm diameter as needed.
More Info
- Standard impedance: 8 ohm
- Compact form factor
| Driver Type | Electric (Moving Coil) |
|---|---|
| Resonant Frequency | 520 Hz |
| Speaker Impedance (Ω) | 8Ω |
| Power Rating (W) | 1 W |
| Sound Level | 83 dB |
| Frequency Response | 300 Hz - 14 kHz |
| Speaker Type | Speaker |
| Diameter (mm) | 45 |
| Mounting Type | Panel Mount |
| Dimensions (mm) | Diameter: 45 mm, Height: 18 mm |
| Weight (g) | 46 |
