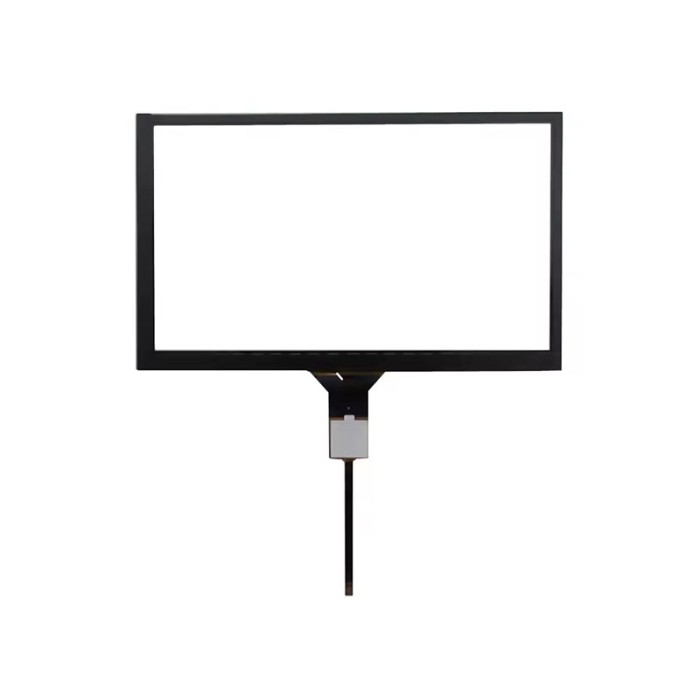

8inch Capacitive Touch Screen - 6pin, 191x115mm

The 8 Inch Capacitive Touch Screen is a touch interface module with a capacitive panel and 6-pin connection. It uses the GT911 driver and supports I2C communication through an FPC connection. The panel has an 8.0 inch diagonal size and an outline dimension of 191W x 115H mm. The active area measures 179W x 102H mm. It is designed for finger or gloved hand input and supports plug and play operation with a USB 2.0 interface.

This capacitive touch screen includes key electrical, mechanical, and environmental specifications for integration into electronics and display projects. The 6-wire layout and 0.5 mm pitch support compact connection requirements. The module also lists optional USB controller card support and broad operating system compatibility.

Features of 8 Inch Capacitive Touch Screen - GT911, 6-Pin, 191x115mm

• Capacitive touch panel
• GT911 driver
• 6-pin connection
• I2C communication
• FPC connector
• Finger or gloved hand input
• USB 2.0 plug and play
• Optional USB controller card

Specifications of 8 Inch Capacitive Touch Screen - GT911, 6-Pin, 191x115mm

• Diagonal Size: 8.0 inch
• Outline Dimension: 191W x 115H mm
• Active Area: 179W x 102H mm
• Wire Number: 6
• USB Controller Card: Optional
• Input Method: Finger or gloved hand (rubber, cloth or leather)
• Touch Times: More than 1 million touches
• Touch Activation Force: 20-80g
• Surface Durability: Meet pencil hardness 3H (per ASTM D3363)
• Linearity Error: <1.5%
• Response Speed: <10ms
• Light Transmission: 80% (Meet ASTM D1003 ENVIROMENTAL)
• Temperature Operating Range: -10„ ~60„
• Storage Range: -10„ ~60„
• Relative Humidity Operating Range: 0%~90% RH (no dew falls)
• Storage Range: 0%~95% RH (no dew falls)
• Altitude: Up to 3,000m
• Operation Voltage Typical + DC 5V
• Power Supply: USB or RS232
• Interface: Full Duplex USB 2.0(Full Speed) Plug and play compatible
• Current: 5mA - 25mA
• Operation System: Linux / Dos / Windows ME 95 98 NT4.0 XP 2000 Win7 Win10/ MacOS
• Pin Pitch: 0.5 mm
• Connection Type: FPC

How to Use 8 Inch Capacitive Touch Screen - GT911, 6-Pin, 191x115mm

1. Connect the touch screen through the FPC connector.
2. Use the I2C interface and the 6-pin connection as required by the project.
3. Provide DC 5V power through the supported power supply method.

More Info

• Supports touch input with a finger or gloved hand.
• Compatible with multiple operating systems listed in the specifications.
• Suitable for electronics and display module projects.
