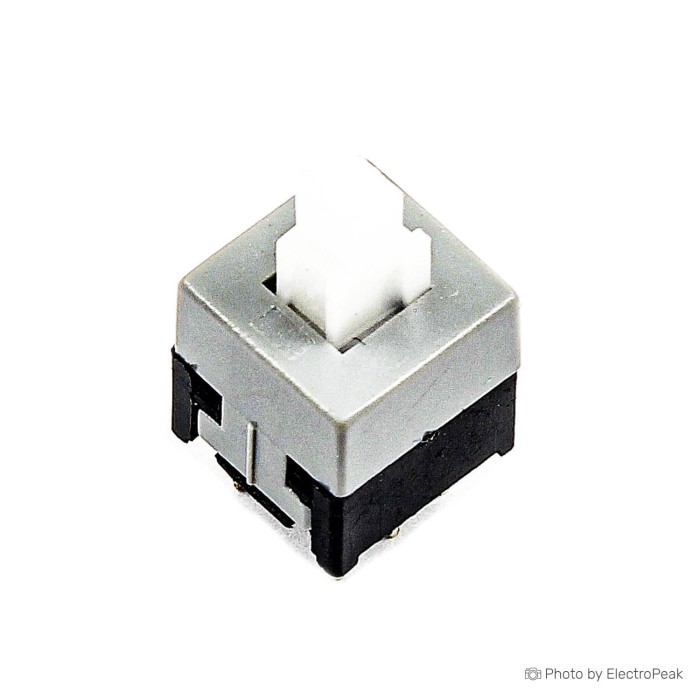

Tactile Push Button Switch - 8.5x8.5mm, 6 Pins

The 6-Pin Tactile Push Button Switch is a compact mechanical switch for manual current control in electrical circuits. It is designed for simple on/off operation with a small footprint and practical 6-pin construction. The switch has a body size of 8.5x8.5x--- mm and comes in a pack of 10 pieces. It is suitable for electronics projects and circuit control where a tactile push button switch is required.

Features of 6-Pin Tactile Push Button Switch - 8.5x8.5mm

• Manual on/off switching
• Compact 8.5x8.5mm size
• 6-pin design
• Plastic and metal body
• Pack of 10 switches

Specifications of 6-Pin Tactile Push Button Switch - 8.5x8.5mm

• Max Voltage: 30V DC
• Max Current: 0.5A
• Dimensions: 8.5x8.5x--- mm
• Pin Pitch: 5mm between rows
• Number of Pins: 6
• Material: Plastic and metal
• Package: Pack of 10 switches
• Operating Temperature: -25°C to +85°C
• Electrical Lifespan: Over 10,000 cycles
• Weight: 8g

How to Use 6-Pin Tactile Push Button Switch - 8.5x8.5mm

1. Place the switch on the circuit board.
2. Connect the 6 pins according to the circuit layout.
3. Use the button to open or close the circuit manually.

More Info

• Mechanical tactile switch type
• Used for circuit control applications
