74HC30, NAND Logic Gate IC, DIP-14
$0.1100
In stock
SKU
S1-0089
Volume discounts:
- +500 9 % $0.1000
74HC30, NAND Logic Gate IC, DIP-14 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NAND, NAND Logic Gate IC, DIP-14 Previous

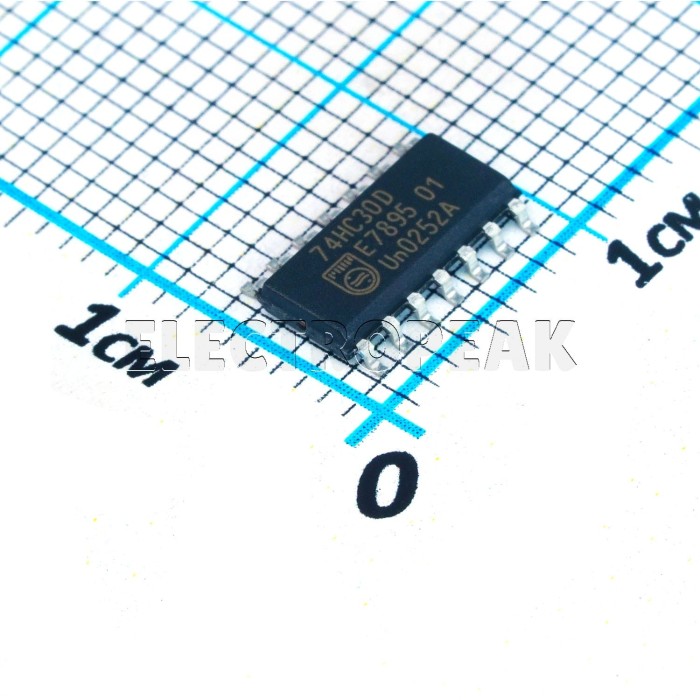

The 74HC30 is an 8-input NAND logic gate IC in an SOP-14 package. It is a CMOS device designed to convert input signals into logical outputs. This 74HC30 NAND gate IC is suitable for electronics and logic circuit applications. Its technical data is listed below for quick reference.
Features of 74HC30 8-Input NAND Logic Gate IC
- 8-input NAND gate
- CMOS technology
- SOP-14 package
- Logic output conversion
Specifications of 74HC30 8-Input NAND Logic Gate IC
- Supply voltage: 2.0V to 6.0V
- Number of inputs: 8
- Low logic voltage: 0.5V to 1.8V
- High logic voltage: 1.5V to 4.2V
- Output current: 5.2 mA at high and low logic levels
- Operating temperature range: -40°C to 85°C
- Package: SOP-14
How to Use 74HC30 8-Input NAND Logic Gate IC
- Connect the IC within the specified supply voltage range.
- Apply input signals to the 8 inputs.
- Read the logical output from the NAND gate.
More Info
- 8-input NAND logic gate IC
- CMOS-based device
| Package | DIP-14 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -55 C° |
| Operating Temperature Max | +125 C° |
| Function | NAND |
| Number of Bits | 1 bit |
| Mounting Type | Through Hole |
| Components - Type | Logic Gates |
