74HC11, Triple 3-Input Pos Logic Gate IC, SO-14 - Pack of 10
[S1-0079]
Volume discounts:
- +100 6 % $2.34
- +300 9 % $2.28
- +500 11 % $2.23
- +1000 13 % $2.18
Shop with confidence
Learn More
Availability:
SKU
S1-0079
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$2.50

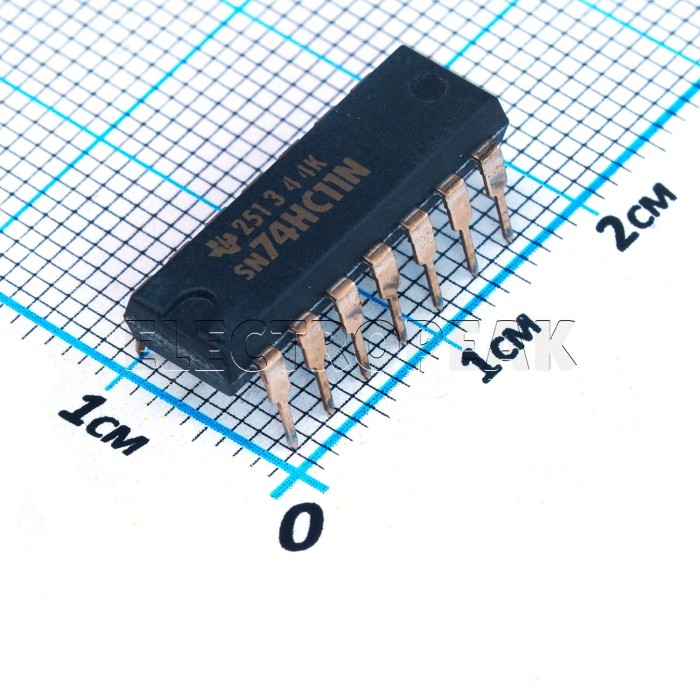

The 74HC11 IC is a triple 3-input AND gate available in a PDIP-14 package. This chip comprises three independent 3-input AND gates, each performing the Boolean function Y = A • B • C in positive logic. The inputs include clamp diodes, allowing the use of current-limiting resistors to interface inputs to voltages higher than VCC.
Specifications of 74HC11 Triple 3-Input AND Gate
- Supply Voltage: 2.0V to 6.0V
- Low Power Consumption: CMOS technology with low power dissipation
- High Noise Immunity: Robust noise immunity
- Latch-Up Performance: Exceeds 100 mA per JESD 78 Class II Level B
-
Input Levels:
- For 74HC11: CMOS level
- For 74HCT11: TTL level
- Package: PDIP-14
| Package | PDIP-14 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Function | Triple 3-Input Pos |
| Number of Bits | 3 bit |
| Mounting Type | Through Hole |
| Components - Type | Logic Gates |
