7-Segment Display - 2-Digit, 0.56inch
SAVE
As low as $0.2300
In stock
Only %1 left
SKU
ELC-16-036
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
7-Segment Display - 4-Digit w/ Clock, 0.56inch Previous

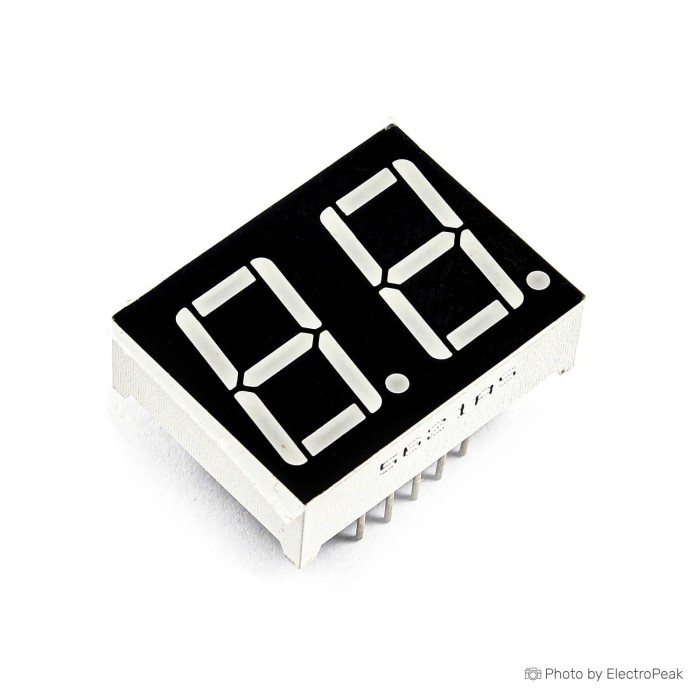

The 7-Segment Display - 2-Digit, 0.56 Inch, Common Cathode is an electronic display component for numerical output in digital devices. It uses red LEDs and a standard 7-segment layout to show numbers from 00 to 99. The display is designed for through-hole mounting and has a 0.56 inch digit height. It is suitable for digital clocks, counters, calculators, and other electronic equipment. This 2-digit 7-segment display provides a clear numeric format for compact electronic designs.
Features of 7-Segment Display - 2-Digit, 0.56 Inch, Common Cathode
- 2-digit numeric display
- Red LED output
- Common cathode type
- Through-hole mounting
- 00 to 99 display range
Specifications of 7-Segment Display - 2-Digit, 0.56 Inch, Common Cathode
- Number of digits: 2 digits
- Emitted color: Red
- Type: Common Cathode
- Digit height: 14.2 mm (0.56 inch)
- Operating voltage: 1.8 to 2.2 V DC
- Operating current: Up to 30 mA per segment
- Viewing angle: ±50 degrees
- Mounting type: Through Hole
- Dimensions: Approximately 25 × 19 × 8 mm
- Applications: Digital clocks, counters, calculators, and other electronic devices
How to Use 7-Segment Display - 2-Digit, 0.56 Inch, Common Cathode
- Mount the display using the through-hole package.
- Connect the segments and digit pins to your circuit.
- Drive the display within the specified voltage and current range.
More Info
- Displays numeric values from 00 to 99.
- Designed for electronic devices that show numerical information.
