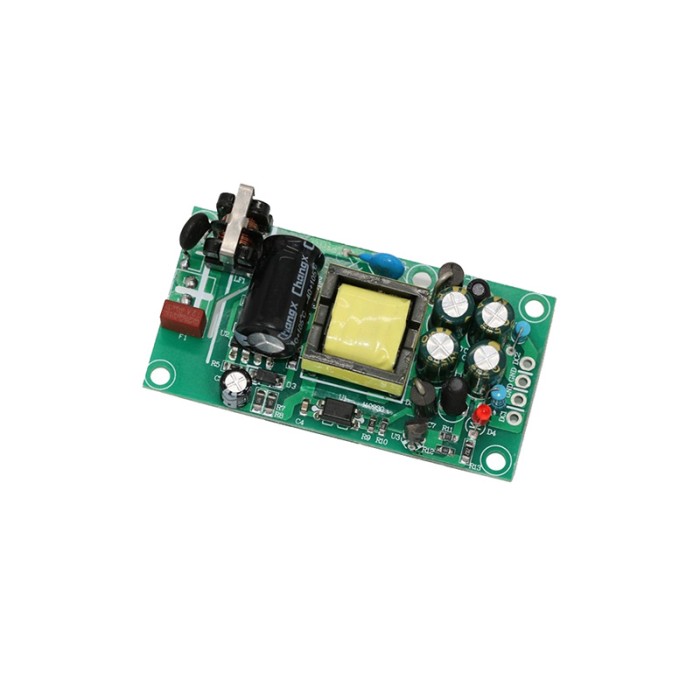

7.5W Switching Power Supply Module With Direct and Reverse Voltage Output

SAVE
As low as $5.2500
In stock
Only %1 left
SKU
BAT-15-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
AC 100V-240V to DCxxVxxA voltage converter with case Previous AC 100V-240V to DCxxVxxA voltage converter with case

The 7.5W Switching Power Supply Module with Direct and Reverse Voltage Output is a reliable and efficient power solution designed for various electronic applications. It operates with a wide input voltage range and provides both positive and negative voltage outputs, making it suitable for powering a variety of electronic devices. The module is designed with protection features such as overcurrent and short-circuit protection, ensuring safe and stable operation. Additionally, it supports high efficiency and operates effectively across a wide temperature range, making it ideal for demanding environments.

Specifications of 7.5W Switching Power Supply Module With Direct and Reverse Voltage Output

  • Input Voltage (VAC): 85-265V

  • Input Voltage (VDC): 120-374V

  • Frequency Range: 47-63Hz

  • Inrush Current: 10A/220VAC (Cold Start)

  • Leakage Current: ≤2mA/220VAC

  • Standby Power: ≤150mW/230VAC

  • Output Voltage (VDC):

    • +5V / -5V

    • +12V / -12V

    • +15V / -15V

    • +24V / -24V

  • Output Current (A):

    • +5V: 1.5A / -5V: 1.5A

    • +12V: 700mA / -12V: 700mA

    • +15V: 500mA / -15V: 500mA

    • +24V: 350mA / -24V: 350mA

  • Output Power: 7.5W

  • Efficiency: Up to 84%

  • Ripple and Noise: ≤150mV

  • Operating Temperature: -20℃ to 70℃

  • Storage Temperature: -40℃ to 85℃

  • Humidity: 20%-90% RH (Operating), 10%-95% RH (Storage, non-condensing)

  • Dimensions: ---

  • Weight: 26g

  • Protection Features:

    • DC short-circuit protection

    • Overcurrent protection (>50%)

    • Output power protection (110%-170% of rated output)

7.5W Switching Power Supply Module Specifications

7.5W Switching Power Supply Module Specifications

1. Input Characteristics

Input Characteristics Details
AC Input (VAC) 85-265
DC Input (VDC) 120-374
Frequency Range (Hz) 47-63
Inrush Current (A) 10A/220VAC (Cold Start)
Leakage Current (mA) ≤2mA/220VAC
Standby Power (W) ≤150mW/230VAC

2. Output Characteristics

Model Output Voltage (VDC) Rated Current (A) Current Range (A) Output Accuracy Voltage Adjustment Accuracy Load Regulation Rated Power (W) Efficiency (%) Ripple & Noise (mV) Startup/Rise/Hold Time (ms) Leakage Current (mA)
JY-17W ±5V +5V / -5V 1.5A / 1.5A 0-1.5A / 0-1.5A ±1% ±1.2% ±1% 15W 79% ≤150mV 2000ms/30ms/115VAC, 1000ms/30ms/230VAC <5mA/220VAC
JY-17W ±12V +12V / -12V 700mA / 700mA 0-0.7A / 0-0.7A ±1% ±1.2% ±1% 17W 83% ≤150mV 2000ms/30ms/115VAC, 1000ms/30ms/230VAC <5mA/220VAC
JY-17W ±15V +15V / -15V 500mA / 500mA 0-0.5A / 0-0.5A ±1% ±1.2% ±4% 17W 83% ≤150mV 2000ms/30ms/115VAC, 1000ms/30ms/230VAC <5mA/220VAC
JY-17W ±24V +24V / -24V 350mA / 350mA 0-0.35A / 0-0.35A ±1% ±1.2% ±4% 17W 84% ≤150mV 2000ms/30ms/115VAC, 1000ms/30ms/230VAC <5mA/220VAC

3. Protection Features

Protection Feature Description
Short-Circuit Protection Cut-off mode, automatically recovers after removing abnormality
Overcurrent Protection >50%
Overpower Protection Rated output power 110%-170%

4. Environmental Characteristics

Environmental Factor Specification
Operating Temperature & Humidity -20°C~70°C, 20%-90% RH (Non-condensing)
Storage Temperature & Humidity -40°C~85°C, 10%-95% RH (Non-condensing)
Dimensions (L x W x H) 76 x 41 x 21 mm
Weight 26g
Lifetime Over 26000 hours under normal working conditions

5. Other Features

Feature Description
Noise Test Measured at a 30cm distance with a 0.1uF and 47uF capacitor across the terminals
Standards Compliance Meets related safety and EMC standards

6. Notes

Note Description
1 The above performance is measured at 25°C with a rated load input of 220VAC.
2 The load regulation is measured from 0% to 100% rated load.
3 The product design and specifications are subject to change without prior notice.
4 Please ensure proper insulation between AC input and DC output before powering up the product.
5 When testing, be cautious of board bending and ensure secure soldering of the terminal ends.
