6S Lithium Battery Charging Protection Board -25.2V 14A
$1.7500
In stock
SKU
BAT-03-077
Volume discounts:
- +100 6 % $1.6500
- +300 7 % $1.6200
- +500 10 % $1.5800
- +1000 11 % $1.5500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More

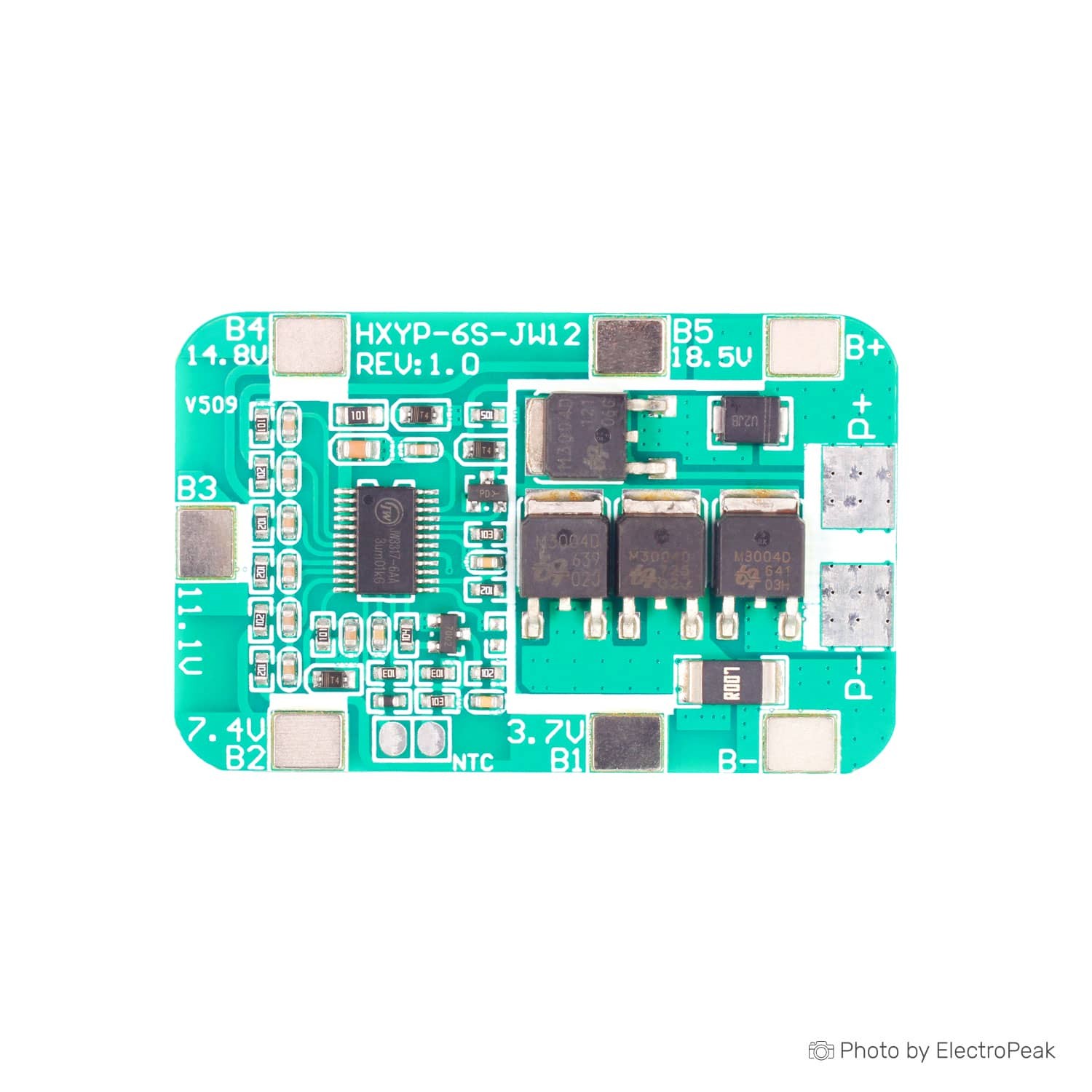

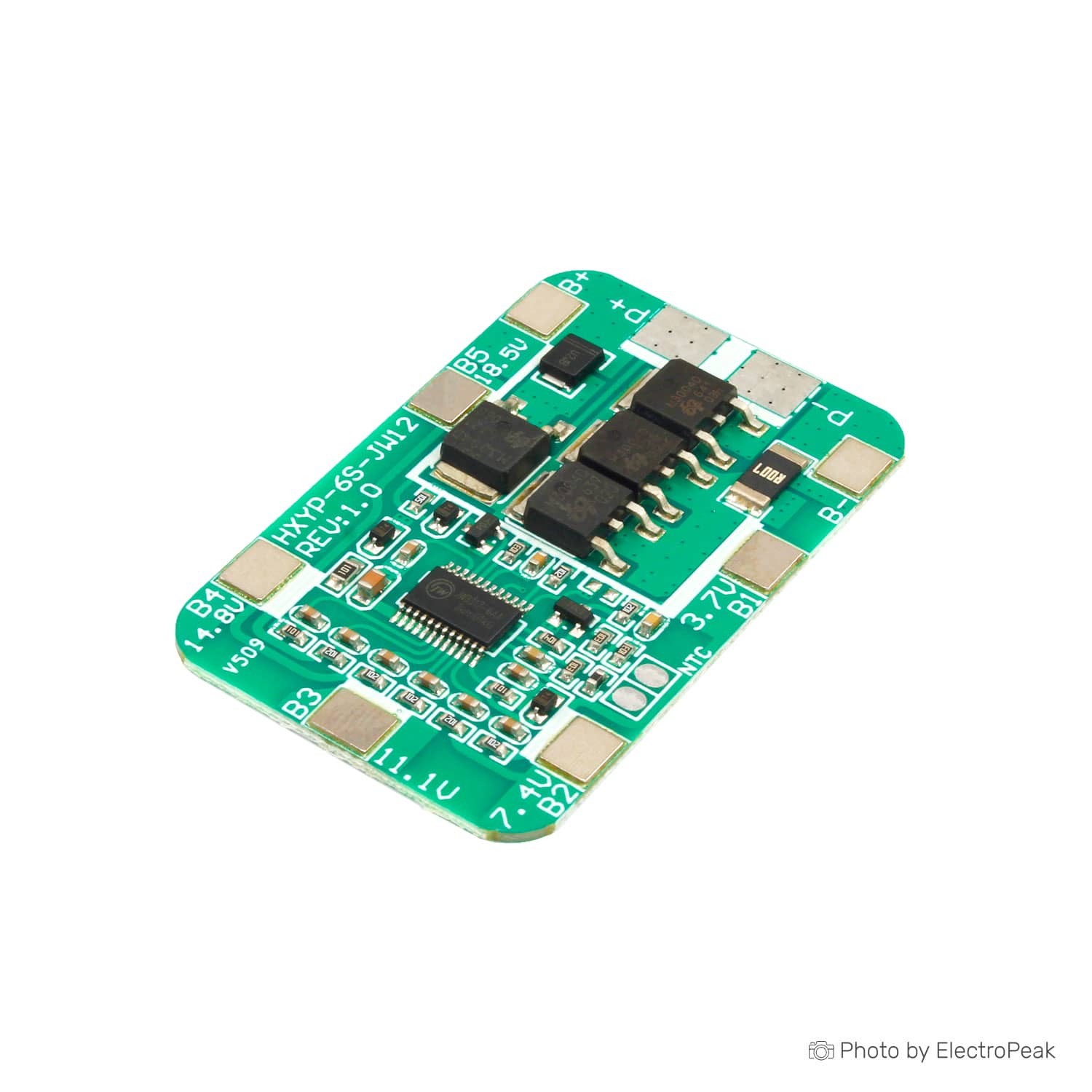

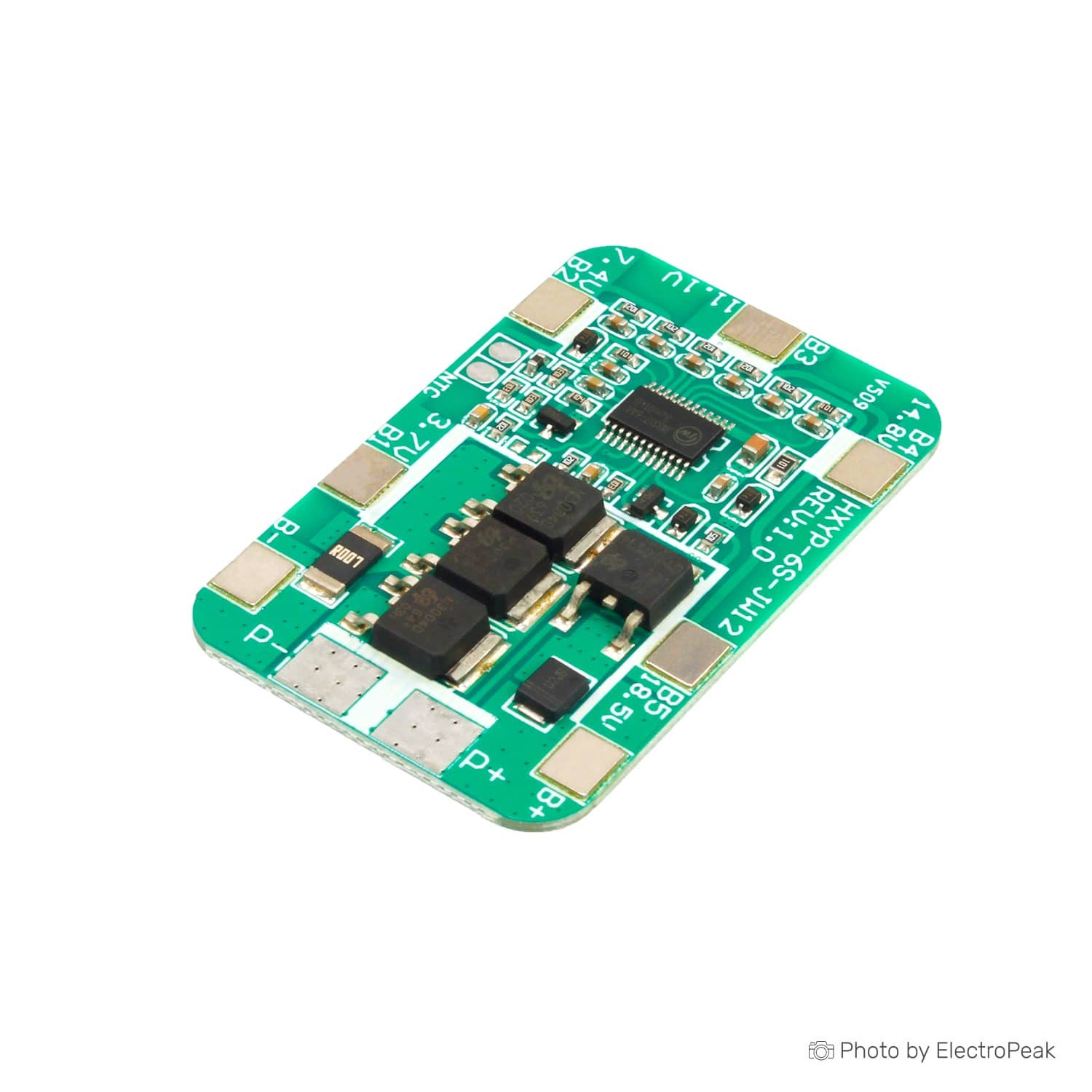

The 6S Lithium Battery Charging Protection Board is designed to provide robust protection for 6-series lithium battery packs. It ensures safe operation by guarding against overcharging, over-discharging, and overcurrent conditions. This board supports a maximum voltage of 25.2V and a continuous discharge current of 14A, making it suitable for various high-capacity battery applications such as electric vehicles, power tools, and backup power systems.
Specifications of 6S Lithium Battery Charging Protection Board -25.2V 14A
- Discharge Current:
- Continuous discharge current: 14A
- Instantaneous discharge current: 22A
- Charge:
- Charging voltage: Lithium battery charger 25.2V
- Recharging current: 25A (max)
- Overcharge protection
- Overcharge detection voltage: 4.28 ±0.05 V
- Overcharge protection delay: 0.5s
- Overcharge release voltage: 4.08±0.05V
- Cell balancing
- Cell balance detection voltage: No
- Cell balancing release voltage: No
- Cell balancing current: No
- Over discharge protection
- Over discharge detection voltage: 2.55±0.08V
- Over discharge detection delay: 0.1S
- Over-discharge release voltage: 2.9±0.1V
- Over current protection
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 10mS
- Over current protection current: 75±5A
- Overcurrent protection release conditions: disconnect load
- Short circuit protection
- Short circuit protection conditions: External load short circuit
- Short circuit detection delay: 250uS
- Short circuit protection release conditions: disconnect load
- temperature protection: No (Temperature switch can be added)
- Main circuit conduction internal resistance: <20ΜΩ
- Self consumption:
- Working current: <30uA
- Sleep current (when current is over-discharged): <20uA
- Operating temperature: -20~80„

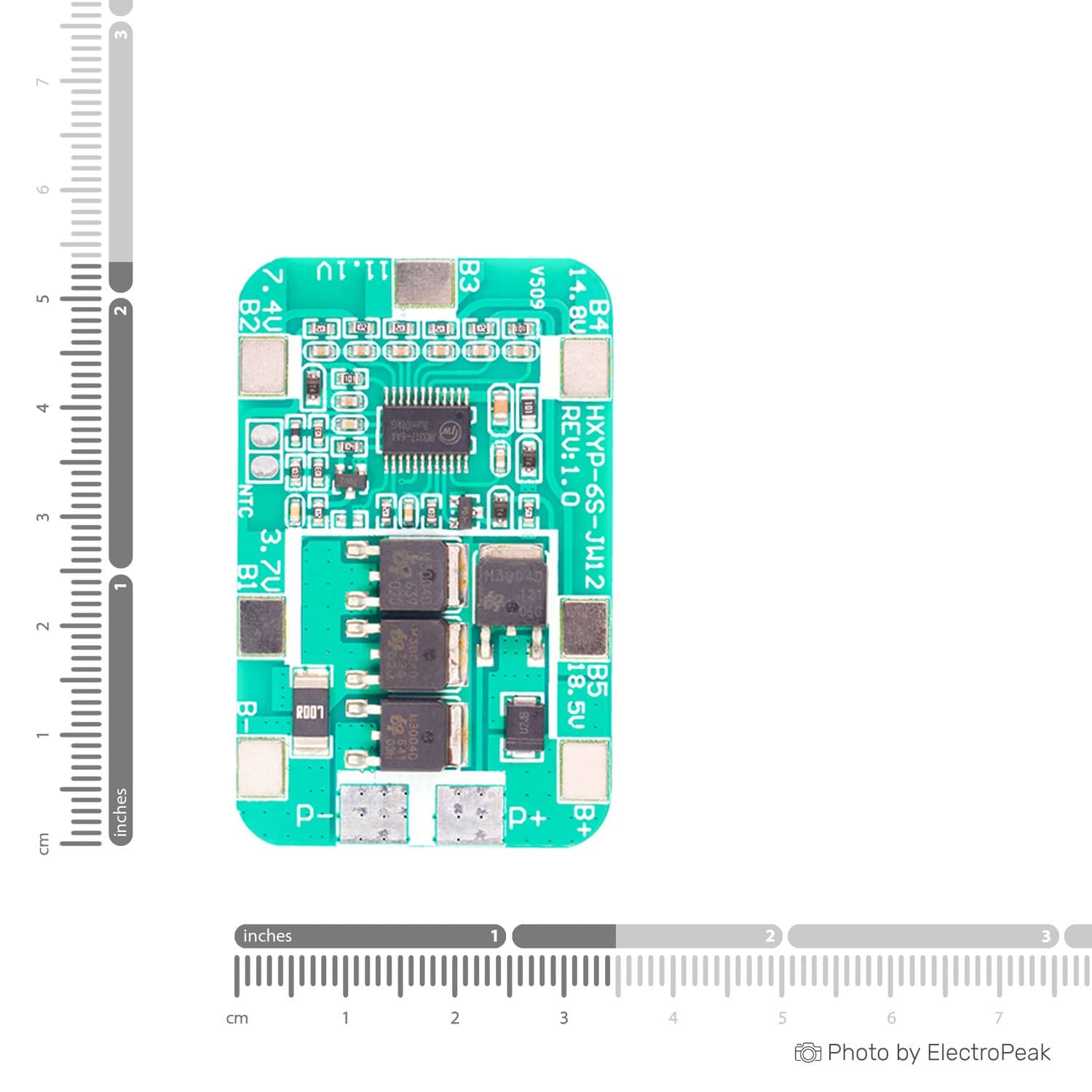

- Dimensions: 53.5x35.5x3.6mm
Notes
- Note 1: Wire according to the diagram: 0V(B-)
3.7V (B1), 7.4V (B2), 11.1V (B3), 14.8V(B4), 18.5V(B5), 22.2V(B+) - Note 2: After connecting the cable, you need to charge it first. Only then will there be output.
- Note 3: When connecting 6 of batteries in series, please ensure that the voltage of the each battery cell is the same. If it is different, please charge it separately.
