Description

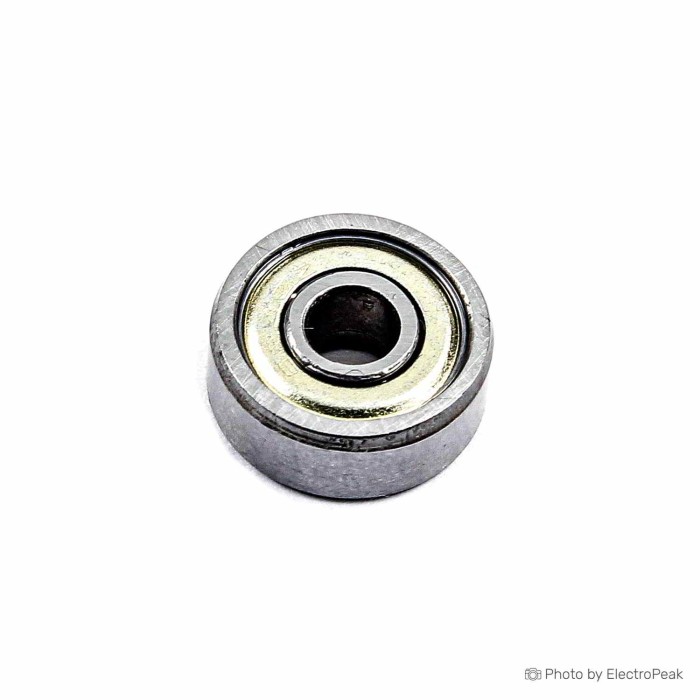

This 625ZZ 5x16x5-millimeter shielded miniature ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. Its chrome steel construction makes it durable and resistant to deformity under heavy loads. The shields on both sides of the bearing keep lubricant in and contaminants out. This deep-groove shielded ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.
Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Features
Model: 625ZZ
Inner diameter: 5 mm
Outside diameter: 16 mm
Width: 5 mm
