5V2A Charging and Discharging Integrated Module With Type-C
- +100 7 % $0.5100
- +300 9 % $0.5000
- +500 11 % $0.4900
- +1000 13 % $0.4800

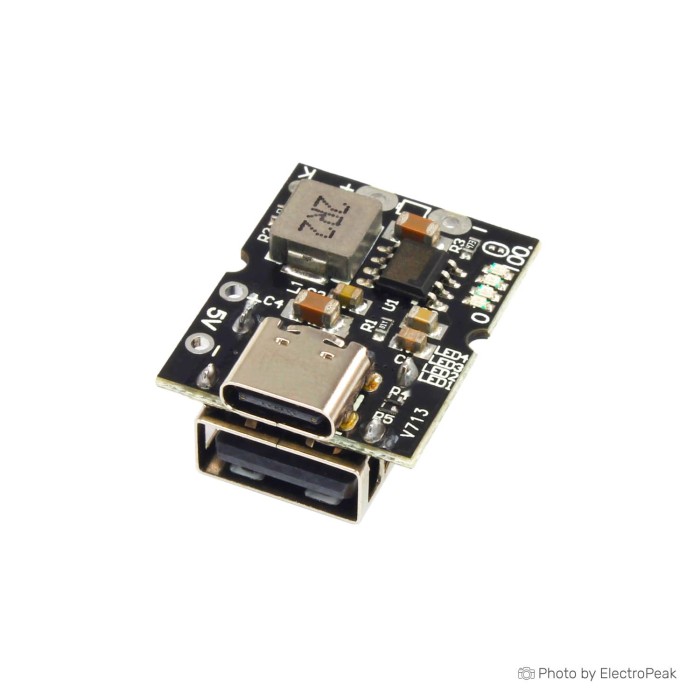

The 5V2A Charging and Discharging Integrated Module with Type-C offers efficient battery management for both charging and discharging operations. With a Type-C interface, it supports a 5V boost output with a maximum current of 2A and boasts high conversion efficiency. The module features automatic charging cycle management and pre-charging functions, ensuring reliable performance for various electronic applications.
Specifications of 5V2A Charging and Discharging Integrated Module With Type-C
-
Input Voltage Range: 5 ~ 5.5V
-
Charging Cut-off Voltage: (4.2V / 4.35V) ± 0.6%
-
Charging Current: 2A ± 5%
-
Boost Output Voltage: 5V ~ 5.15V (including loss compensation)
-
Boost Output Voltage Ripple: 100mV
-
Boost Output Current: 2A
-
Boost Conversion Efficiency: 92.5% (with 3.6V input and 5V2A output)
-
Battery Static Current: < 30µA
-
Dimensions: 25x20mm
How to use 5V2A Charging and Discharging Integrated Module With Type-C
-
Power Control:
-
Connect an external key to the K point and the output negative pole to control the power display and 5V output.
-
Short press the key to turn on the power display and 5V output.
-
Two short presses will turn off the power display and 5V output.
-
-
Charging Cycle:
-
The module automatically stops charging when the charging current drops to 100mA.
-
Charging resumes if the battery voltage drops below 4.1V.
-
Pre-charging occurs at 180mA if the battery voltage falls below 2.8V.
-
-
Discharge and Charge:
-
Supports simultaneous discharging while charging the battery.
-
